Description
Walk in Cold Rooms represent the excellence in maintaining the freshness & quality of food & medical products by preserving & protecting the essential characteristics of the products contained.
Description:

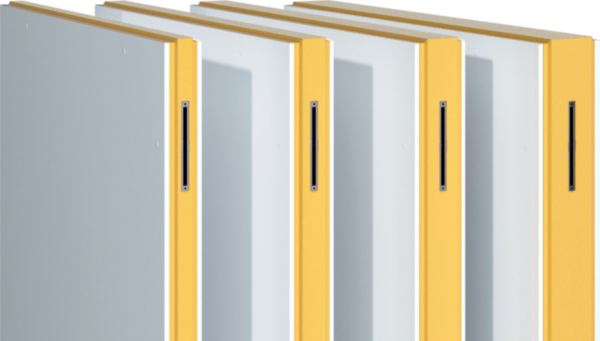

Mini cold rooms consist of modular panels and are available in 4 different thicknesses (80, 100, 120 & 150mm) making them suitable for both positive & negative temperatures down to -25 deg. C.
Positive temperature walk in fridges are available with & without floor, while low temperature walk in freezers are supplied with a floor to ensure the best level of thermal insulation.
Floor:
Floor spacers are provided to raise the floor of the cold room to allow air circulation, helping to maintain optimal hygienic & insulated internal conditions.
A wide range of pressure relief, compensation valves are available to keep the internal cold room & external air pressures balanced.
Ease of installation;
Modularity, flexibility & high customisation possibilities allow the cold room to be configured according to customer’s specific requirements ensuring:-
- High product & component quality; panels, doors & refrigeration
- Plug-in through-wall mounting monobloc refrigeration operating on R290 natural refrigerant gas
- Modular panels providing versatility & adaptability

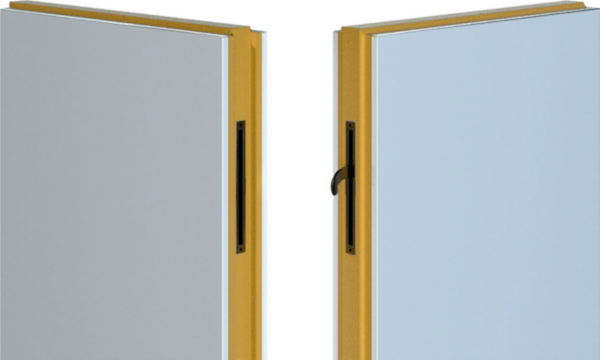

- Ease & speed of installation due to camlock panel feature
- High level of hygiene & ease of cleaning & maintenance
- High energy efficiency & reduced environmental impact
Options:-

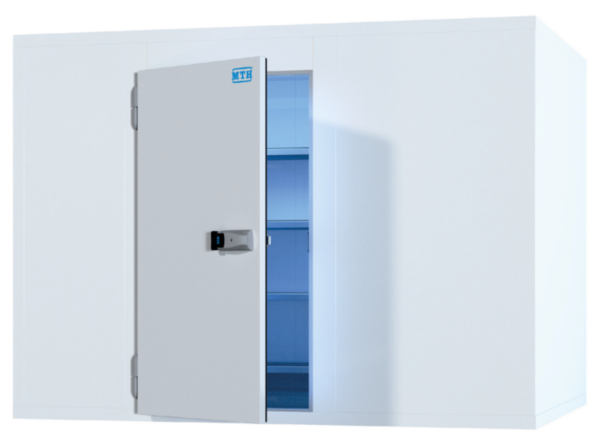

- Standard single compartment cold room; made of white (RAL9010) insulated panels with anti-slip flooring

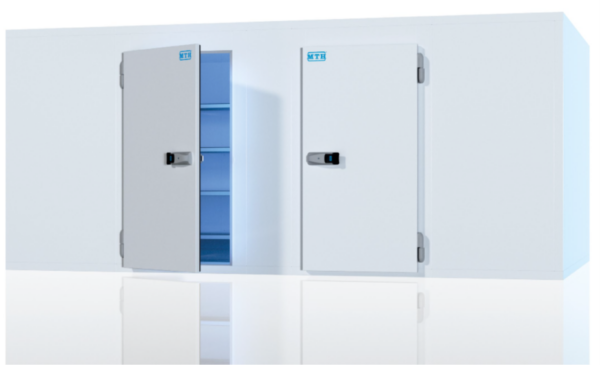

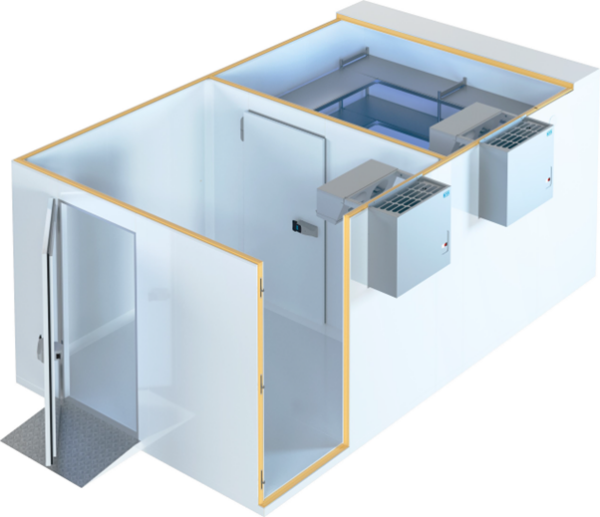

- Multi-compartment cold room; internal dividers for room to be divided into several compartments, allowing for storage at different temperatures

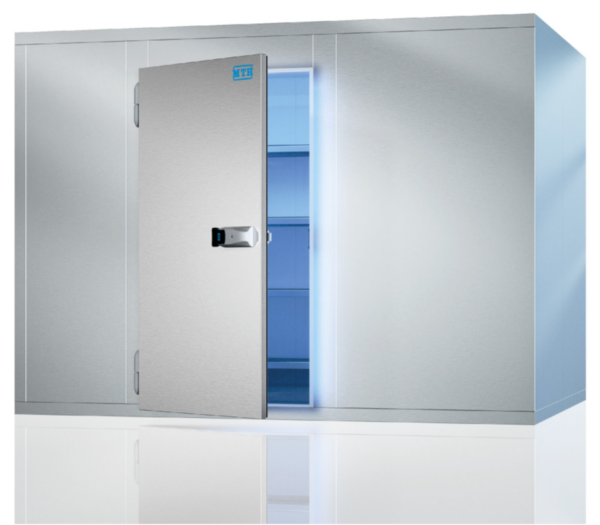

- Stainless steel cold room; panels covered with AISI 304 stainless steel sheet to withstand the most aggressive environments. Ideal storage where high resistance to wear & corrosion is required
Additionally,
We offer free surveys & the following:-
- Supply only
- Supply & Install
- With or without refrigeration
- With or without floor (temperature dependent)
- Flooring is anti-slip with three support load options; walkable, reinforced walkable or wheelable with double reinforcement
- Strip curtains to doorways to reduce heat exchange
- Modular shelving system in aluminium or PVC (not included / optional)
- Access ramp for trollies & pallet trucks, for cold room with modular floor (not included / optional)
Refrigeration:

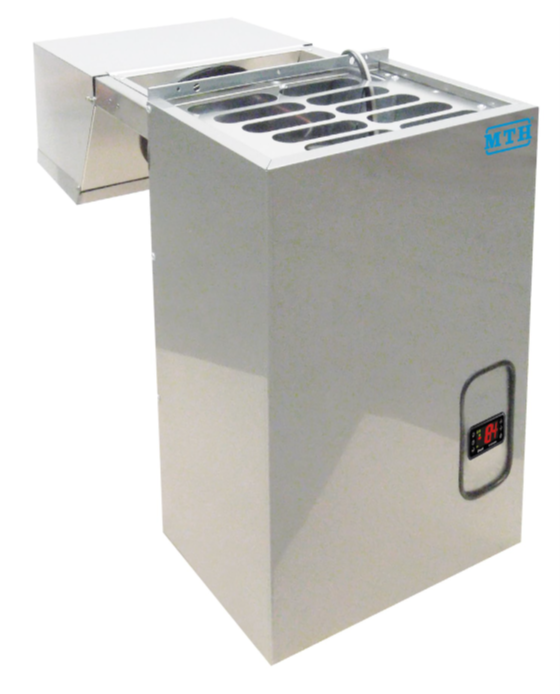

The monobloc refrigeration units are complete plug-in systems designed for ease of installation & manufactured to high quality standards complete with:-
- Control panel with autonomous ON/OFF switch
- Evaporator with hot gas defrost with adjustable frequency
- Condensate collection tray complete with condensate evaporation system & overflow pipe
- Cold room fan cut off microswitch
Quality:
Walk in Cold Rooms have CE Marking meeting all essential EU requirements, food safety, hygiene & quality certifications
