Band Sealers

Band Sealers,  Rotary Sealers  or Continuous Sealers

Hand impulse sealers are generally the entry models into heat sealing plastic bags and then as volumes increase you may upgrade to a foot switch operated heat sealer.  But if you require more speed then the next consideration should be a rotary continuous band sealer.  The band sealers are easy to use and once the temperature and conveyor speed have been set then the sealer can operate for long periods of time.  The maximum speed is normally limited by the speed an operator can feed the sealer,  you may be able to achieve more than 12 bags per minute (5000+ per day).

You will find a range in sizes and prices in vertical and horizontal models, some of the smaller band sealers are table top mounted suited for smaller pre made bags. The larger machines are normally floor standing which are suited for larger bags.  Useful options are ink or embossed printing of coding.

Rotary continuous sealers are designed for pre-made, single or multi-layer plastic bags including foils and craft paper laminate.

Vertical

The vertical band sealers are ideal for flowable products like powder, liquid, or solid products that would spill if sealed lying flat. The height of the packed bag will govern the size of the band sealer.  The bag must be measured when filled with the product as the filled bag is not normally as tall as the empty bag.  The tabletop machines are normally suitable for bags less than 300mm in height and lower weights and some models can be converted into horizontal mode. Floor mounted machines should be considered for larger heavier bags.

Horizontal

Horizontal band sealers are not suitable for flowable products like powder, liquid, or solid products that would spill if sealed lying flat. The height and weight of the packed bag normally govern the size of the band sealer. The horizontal tabletop machines are normally suitable for bags less than 300mm to 400mm in height as larger bags can overhang the conveyor. Some table top models can be converted into horizontal mode

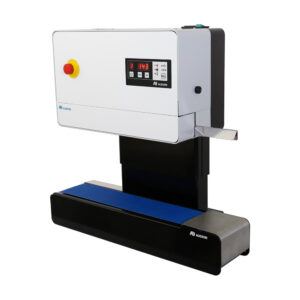

We supply European made Audion machines and the significantly cheaper Asian models. Both are similar in operation but the Audion models tend to have more advanced technical operational features.

Critical spare parts for the continuous band sealers are the Teflon (PTFE) bands which should be replace regularly when they break or appear blackened.

If you require a faster sealer than you will need to consider automation.
