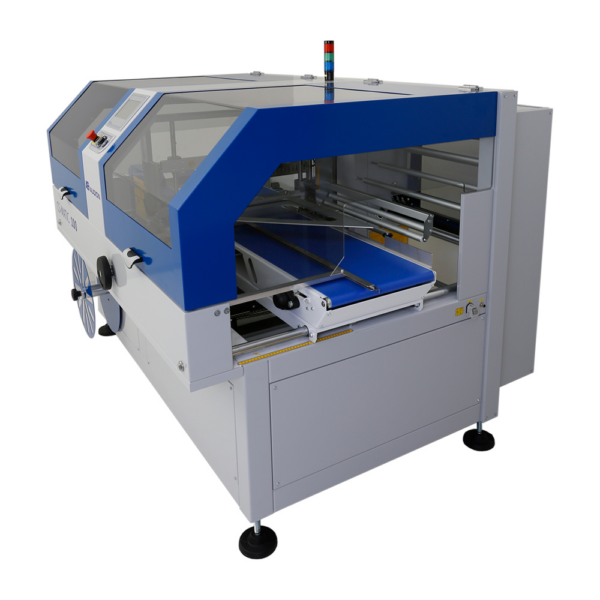

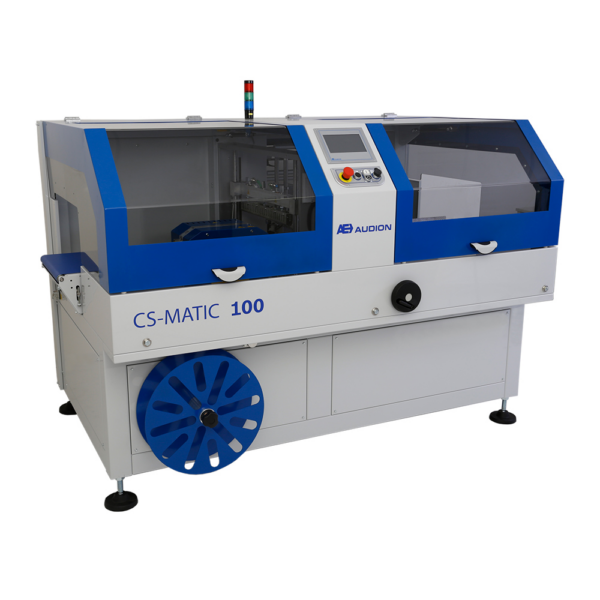

Automatic Shrink Sealer ACS-Matic 100

Automatic Shrink Sealer ACS-Matic 100

Call for price

Availability: In stock SKU: SCS-Matic
  • Description
  • Brand
  • Reviews (0)

Description

This new ACS-Matic Automatic Shrink Sealer works with a continuous side sealer and a longitudinal intermittent sealing system that has at least 3 indisputable advantages:

  • Unlimited length of product that can be packed
  • Significant increase in production capacity
  • Less waste film, resulting in lower costs

Features

  • ACS Matic Automatic Shrink Sealer
  • Alternate longitudinal sealing system with a continuous vertical seal
  • PTFE coated horizontal sealing bar
  • Inverter and encoder controlled
  • Automatic adjustment of the center seal

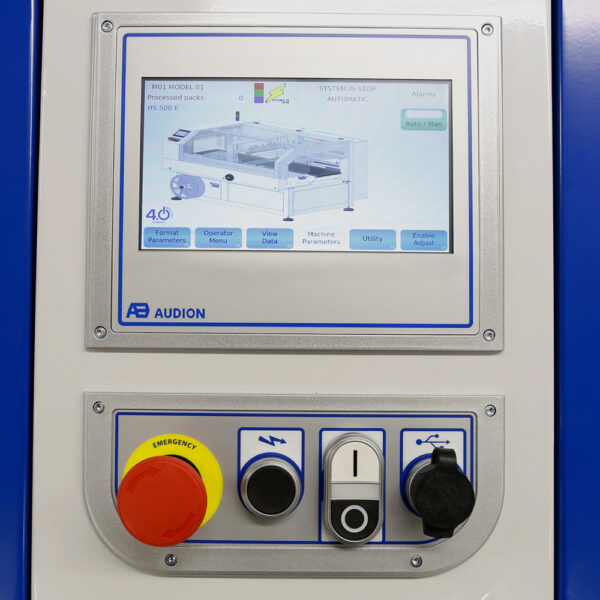

  • Flexmode control sytem with:
    – Alpha numeric LCD control panel
    – Panel PC and 7” full colour touchscreen display
    – 32-bit microprocessor
    – Each motor equipped with inverter
    – In/out control modules for digital, analog input/output and thermo couple- reading control for series
  • Memory for 20 different operating programs
  • Easy film insertion and convoying system
  • Kissing belts
  • Storage / readout of process statistics (counter,measurements of pack length, real time out put, machine performance, control of irregular packs)
  • Automatic control of the sealing bar height
  • Conveyor speed electronically adjustable
  • Single pack/ multi-pack mode
  • Adjustable sealing time
  • The seal temperature is dual adjustable (for both sealers)
  • Faulty packs detection
  • Video: https://youtu.be/uzF8iQ_rl6A

Specifications

Seal length 500 mm
Seal width 0,7 mm
Type of machine Shrink sealer
Model Floor
Covering Epoxy
Machine size (lxlwxh) 2180 x 1545 x 1525-1655 mm
Machine weight 715 kg
Type of film PVC, PO (Polyolefin), PE (Polyethylene)
Thickness of film 2 x 30 micron

Brand

Audion

Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.

With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.

Audion Packing Machines:

  • Table top heat sealers
  • Medical / pharmaceutical / high tech packaging
  • Vacuum packing
  • Automatic packaging
  • Shrink packaging
  • Rotary / Band sealers
  • Tray sealers
  • Packaging material – Consumables
  • Packaging machines for E-commerce
As well as producing standard machines, Audion are happy to provide bespoke models where required.
