Audion Tube Sealer 50

£6,708.00 £6,474.00 inc VAT (£5,395.00 ex VAT)

Availability: 10-14 days SKU: ATube 50
  • Description
  • Brand
  • Additional information
  • Reviews (0)

Description

Audion Tube sealer for the simultaneously sealing and coding of PE-AL/PE tubes

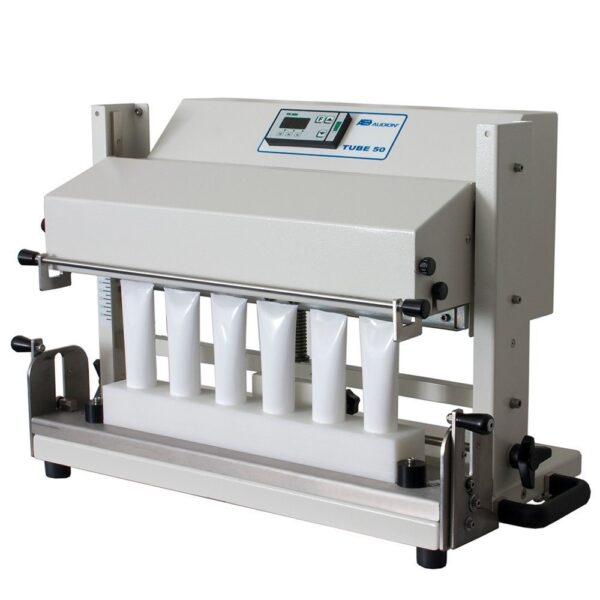

The Audion Tube Sealer 50 is a compact and complete solution for the heat sealing and optional coding of plastic tubes of different lengths and diameters. Capable of typically sealing up to six tubes at any one time (depending on tube diameter). This user-friendly machine is supplied with an innovative temperature control system, which steady monitors, cycle after cycle, the actual sealing temperature. The sealing and cooling time is electronic controlled.

“Compact model tube sealer with code-seal option”

The Tube 50 is equipped with bi-active sealing bars; a moving thermo controlled impulse seal bar and a fixed heat seal bar which is prepared for code sealing. Average productivity 600 tubes/h.

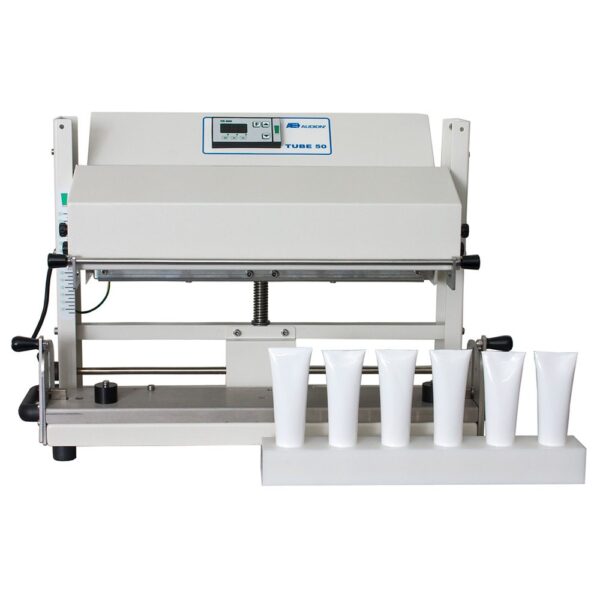

Complete with 2 tubes holders upon request among following standard Ø: 20 – 25 – 30 – 35 – 40 – 50 mm.

Features:

  • 4-6 tubes sealed during cycle
  • Tube length: 70 mm-230 mm
  • Tube Ø: 20-50 mm
  • Tube holder for 6 tubes: cap Ø from 20 to 40 mm (seal length max. 65 mm per tube)
  • Tube holder for 4 tubes: cap Ø from 40 to 50 mm

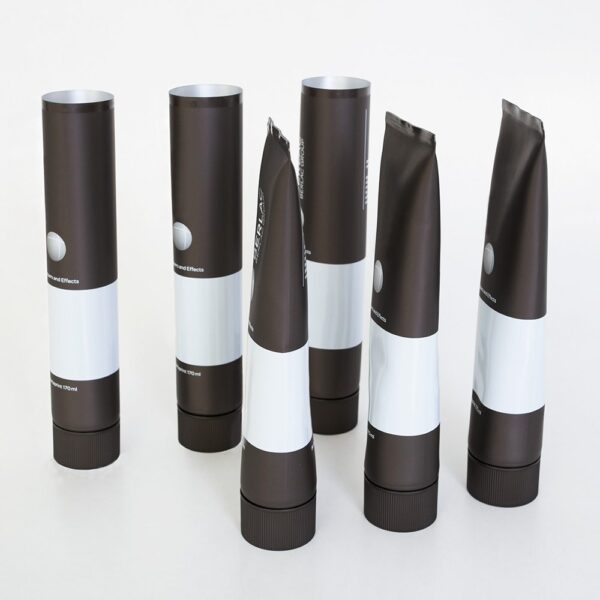

  • Possible tubes: PE-PP/AL-PE
  • Seal width: 4 mm flat
  • Sealing: flat 105/220 x 4 mm
  • Bi-active sealing bars
  • Moving Thermo controlled impulse seal bar

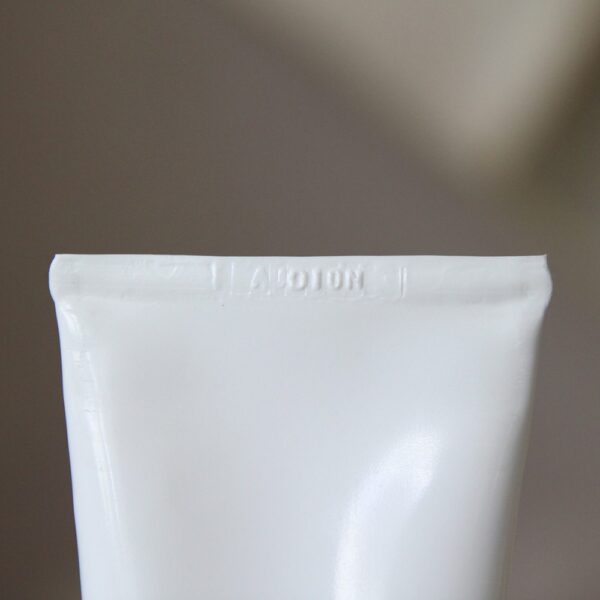

  • Fixed heat seal bar (code seal prepared)
  • Electronic control of seal and cool time
  • Automatic adjustment of sealing pressure
  • 9 storage programs
  • Seal temperature: 50°C ÷ 300°C ± 1°



Brand

Audion

Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.

With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.

Audion Packing Machines:

  • Table top heat sealers
  • Medical / pharmaceutical / high tech packaging
  • Vacuum packing
  • Automatic packaging
  • Shrink packaging
  • Rotary / Band sealers
  • Tray sealers
  • Packaging material – Consumables
  • Packaging machines for E-commerce
As well as producing standard machines, Audion are happy to provide bespoke models where required.

Additional information

Weight 35 kg
Bag Material

,

Capacity

Feature

,

Seal Length

Seal Width

Sealer Type

,
