PSS Gantry Sealer

Call for price

Availability: Contact us for a quotation SKU: Star Gantry
  • Description
  • Brand
  • Additional information
  • Reviews (0)

Description

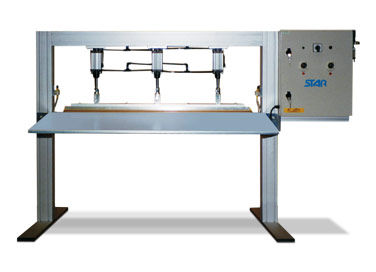

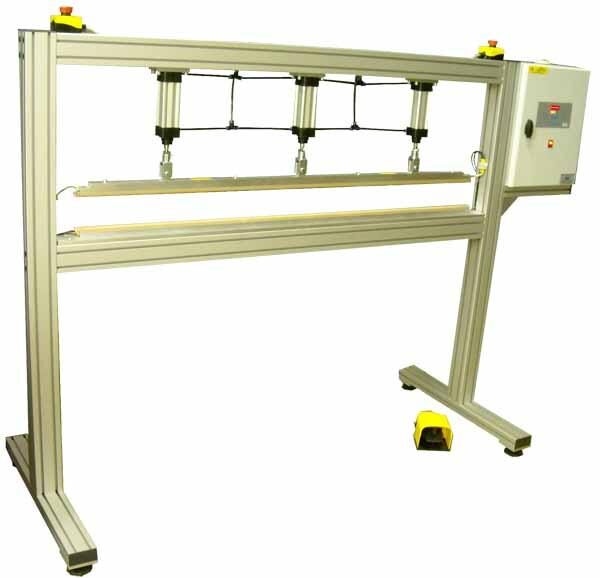

The Star Gantry Sealer produces long, straight welds up to 3000mm and is available in both free-standing and bench-mounted formats. The machine frame is constructed from an anodised aluminium profile, maximising rigidity whilst minimising weight. The gantry sealer is available with either one or both jaws heated allowing a wide range of packing materials to be sealed including foil, paper, biodegradable materials, laminates and most modern plastics.Pneumatically operated automatic jaws allow operators to prepare for the next product during the sealing cycle maximising machine throughput.

The Star Gantry Sealer is available with: A sealing length of up to 3000mm (3m or 9ft 10″)

Either single or dual jaw heating Bench-mounted and free-standing options

The Star Gantry is available with four different seal cycle controllers:

The MkVI offers weld and cool control to the nearest 1/10th of a second and has a built in program to help counteract the effects of heat build-up during rapid cycling. The innovative MkVI C has weld and cool control to the nearest °C. Adjustment is made by the keypad with an LCD readout of the settings. The keys can also be locked to prevent unauthorised alteration.
If more accurate controls are required, the Star ARTICS and Medical controllers also allow the element to ramp up to a weld temperature and be held for a time. Cooling time or temperature and element preheat are also included. This allows for a perfect weld to be achieved every cycle. All settings are password protected and the board allows up to 8 different sets of parameters to be programmed. Alarm parameters can be set to give operational tolerances; seal cycle data storage is available with Medical controller.

As all Star Gantry sealers are built in the UK to customer requirements and specification the range of options are vast and diverse. Some of the more commonly fitted options include work tables in front of the sealing jaws, automatic flying knife cutter behind the jaws and roll carriers for producing large bags from tubing or centre folded materials. Below are just a few of the examples of custom built machines we have produced for customers in the past. If you have an unusual application for any sort of sealing please contact our PackSealer.

Contact us for quotation prior to ordering otherwise we can send you more information.



Brand

Star Universal

Star Universal British Heat Sealers

Star Universal manufacture heavy duty bag sealers, vacuum sealers and specialised industrial heat sealers in the UK. The range of Star Universal industrial heat sealers, sack sealers and vacuum sealers offers flexibility and reliability whether you are sealing polyethylene bags, medical pouches, laminate vacuum pouches or foil bags. The UK factory ensure the highest of standards and quality assured impulse heat sealers. Many sealers are built to order so it is worth checking first with PackSealer to confirm the availability and delivery lead time. Star Universal have been designing and manufacturing industrial heat sealers for over 40 years. They can produce custom and special purpose heat sealing machinery meeting client requirements across a wide range of industries. If you need a modification to one of the standard heat sealers or something more unusual, PackSealer will work with you and Star to produce a solution based on Star's proven heat sealing equipment. Quality and consistency of seal are the qualities of Star Universal heat sealing machines. Heat compensation technology helps every seal to be the same high standard, even during repeated cycling of the heat sealer. Star’s Mk.VI C, Medical and ARTICS controllers have a heat sensor inserted into the sealing jaws giving unrivalled control of sealing temperature.  Star also offer a fully validatable Medical sealer which has been approved by the medical and pharmaceutical sectors. Star Universal industrial bag sealers, sack sealers and vacuum sealers have a well-deserved reputation for durability and reliability. Full spares and service support for the range of bag sealing machines, direct from PackSealer. Please note that Star Universal heat sealers may have to be made to order and are not stocked by PACKSEALER. Please check with PACKSEALER for delivery information prior to ordering.

Additional information

Weight 200 kg
Capacity

Feature

, , , , ,

Seal Length

Seal Width

, , ,

Sealer Type

,
