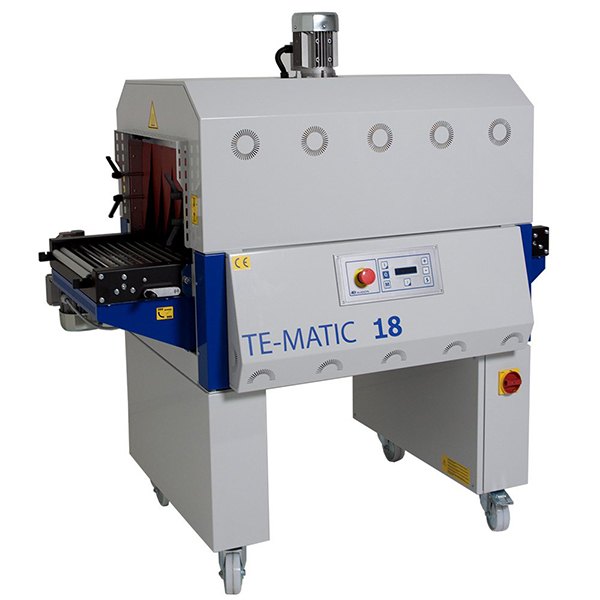

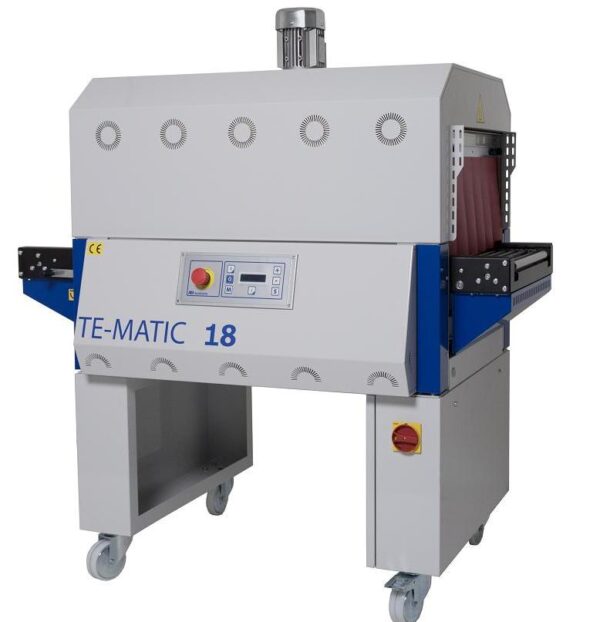

Shrink Tunnel TE-Matic

Shrink Tunnel TE-Matic

Call for price

Availability: In stock SKU: ATM-18
  • Description
  • Brand

Description

Shrink tunnel used to shrink materials like polyolefin films which have been sealed around a product. Especially for premium high clarity presentation of your product. Guarantees extra protection of your product during transport.

The ATM 18

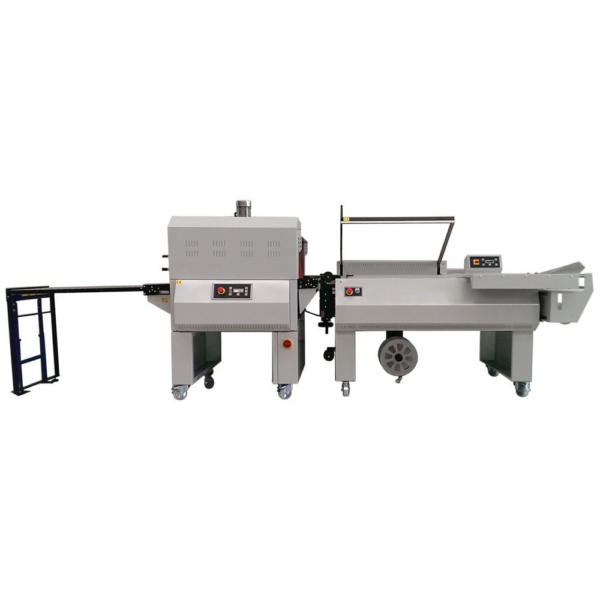

Shrink tunnels like the ATM 18 will mostly be paired with an automatic L sealer or side sealer. These sealers will automatically push the product which is just sealed into the shrink tunnel where the shrink process takes place.

With the Audion ATM 18 shrink tunnel you are able to adjust the tunnel temperature, conveyor speed and tunnel air flow. With the two baffles you can reduce the hot air flow below the product or control the hot air flow coming from above. Ideal to to gurantee the best possible shrink result for each product. Finally, the good looking shrink wrapped product appears out of the tunnel and can be collected.

The ATM 18 shrink tunnel is designed to seamlessly integrate into your packaging line, easily to be connected to an automatic L sealer or side sealer. Audion shrink tunnels are based on well proven quality and equipped with the latest and best shrink control technology.

The Audion ATM shrink tunnel series are heavy duty shrink tunnels which are known for their high quality and precise shrink temperature vs speed controls. Easily it will shrink your thinnest polyolefin or the toughest polyethylene films. Built in Europe from high quality materials. With a conveyor speed of 14,5 meter/minute the TM18 is a great option to increase your packaging output while offering a consistent shrink performance to your products.

Specification

Specifications of the Audion ATM 18

Product number:    ATM 18
Chamber:                 Single
Covering:                 Epoxy
Conveyor speed:     2 – 14,5 m/min
Tunnel temperature:     95 – 200°C at 1°C increments
Type of film:            PVC, PO (Polyolefin) and PE (Polyethylene)
Thickness of film:   Up to 50 micron
Max. product height:  230 mm
Dimensions:            1310 x 835 x 1440 mm
Power:                       8000 W
Weight:                     187 kg
Voltage:                     220/240V-3ph-50Hz | 380/415V-3ph-50Hz

Brand

Audion

Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.

With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.

Audion Packing Machines:

  • Table top heat sealers
  • Medical / pharmaceutical / high tech packaging
  • Vacuum packing
  • Automatic packaging
  • Shrink packaging
  • Rotary / Band sealers
  • Tray sealers
  • Packaging material – Consumables
  • Packaging machines for E-commerce
As well as producing standard machines, Audion are happy to provide bespoke models where required.
