- Description

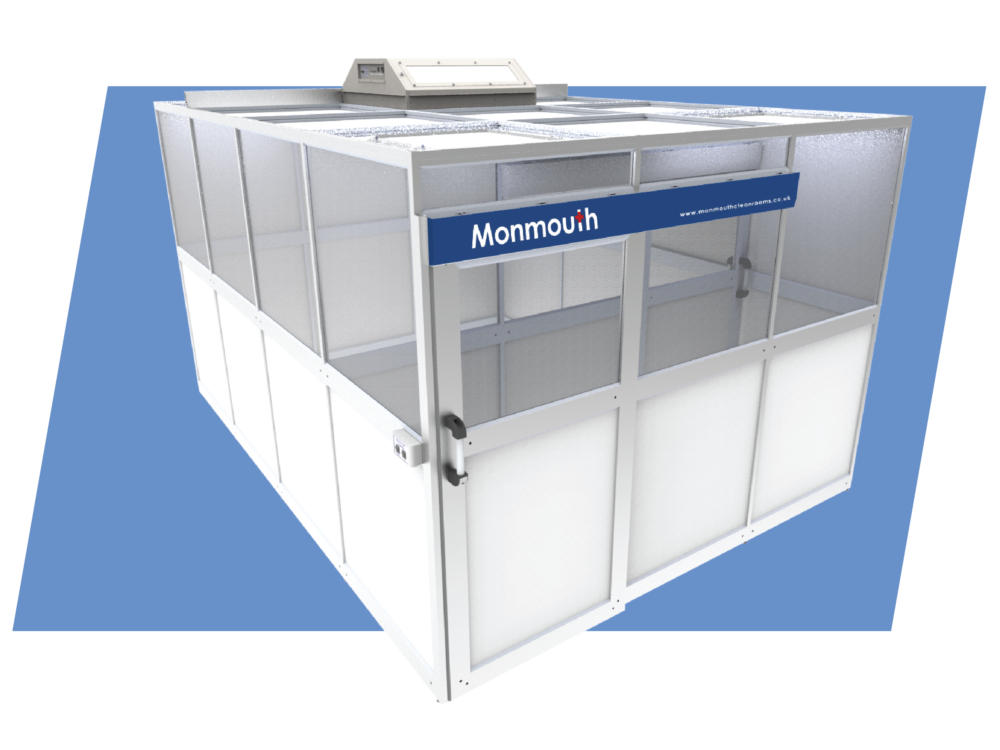

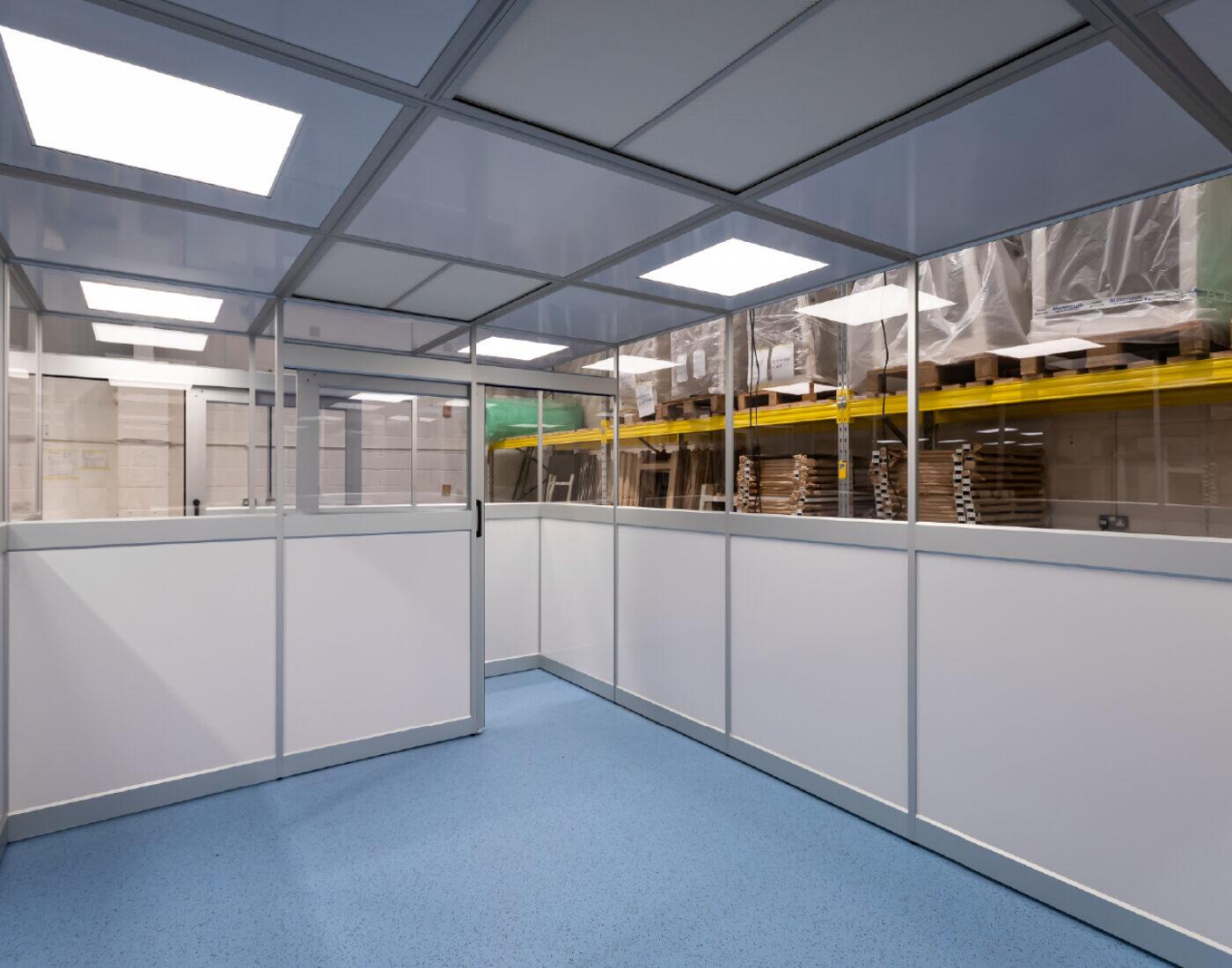

Aluminium Modular Cleanrooms
Create a guaranteed ISO Class clean environment with an existing room or space. Constructed from free-standing aluminium framework, assembled on site in just a few hours. Expandable & adaptable, Modular Cleanrooms offer a permanent or semi-permanent cost-effective solution to creating a clean area quickly with minimum on-site disruption.Construction:
We offer a range of standard sizes from 12m2 to 25m2or an entirely bespoke solution, allowing us to accommodate sizes from small to larger scale installations. All components are manufactured from long lasting & easily cleaned materials to ensure years of uninterrupted service.

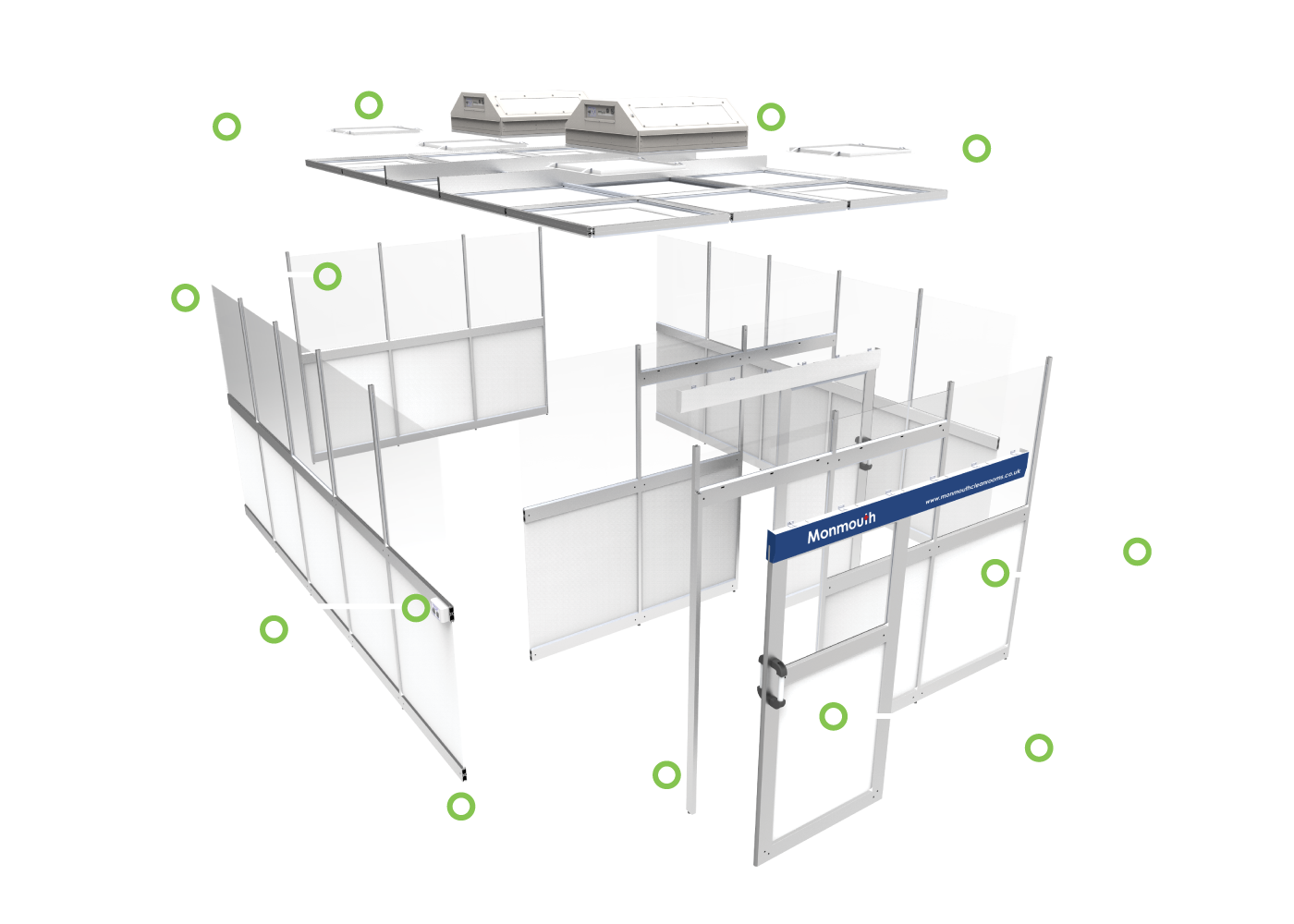

The construction is lightweight & can be dismantled & relocated if required. With a choice different size standard elements, a variety of working areas can be created. Panel walling is constructed from aluminium composite, to suit requirements, and clear non-break polycarbonate to create window panes.
The Modular Cleanrooms can be built with or without changing/entrance areas. The entrances can be constructed utilising sliding doors, hinged doors, strip curtains or a combination of the three. Transfer hatches can be installed to allow the safe & easy passing of items into the clean environmentOperation:
Clean Air Modules (CAM) use H14 HEPA (High Efficiency Particulate Air) filters with 99.997% efficiency at 0.3 microns to create a positive pressure & clean air environment within the room.
A variety of levels of cleanliness can be achieved in accordance with ISO Cleanroom standards to BS EN ISO 14644-1; Classes 6, 7 & 8 being the most common.

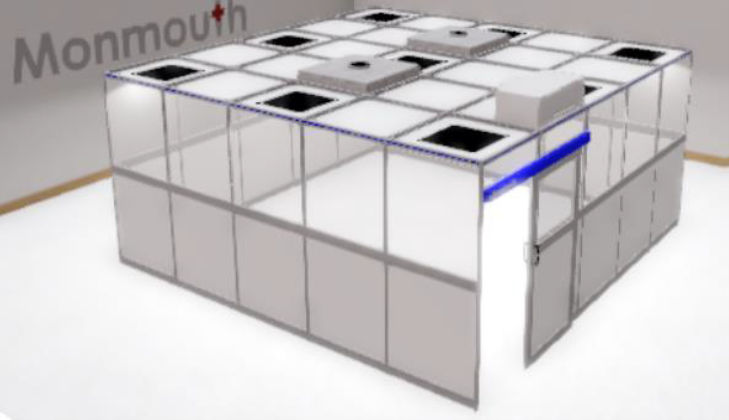

Layout:- Overall ext. dims: 5030 x 5030 x 2450mm
- Overall int. dims: 4970 x 4970 x 2300mm
- Internal height: 2300mm
- Min. headroom: 2780mm
Features:
- ISO Class Environments
- A variety of levels of cleanliness can be achieved in accordance with ISO Cleanroom Standards to BS EN ISO 14644-1
- Rapid Assembly
- Can be quickly & easily constructed for high performance use.
- High Quality Filters
- Clean Air Modules (CAM) use H14 HEPA (High Efficiency Particulate Air) filters with 99.997% efficiency at 0.3 microns to create a clean environment.
- Modular Bespoke Design
- ECO Mode
- PIR sensors ensure efficient energy consumption by placing the cabinet in Eco Mode after a period of operator inactivity.
- Cabinet power is reduced
- LED lighting & Visionaire control display is deactivated
- Fan speed is reduced to 50%
- PIR sensors ensure efficient energy consumption by placing the cabinet in Eco Mode after a period of operator inactivity.
- Touchscreen Control Interface
- The Visionaire controller provided allows for the highest level of operator monitoring, giving you the ability to control every necessary aspect of product operation.
Specification includes:
- ISO Class 8
- 1No. Sliding Door
- 9No. LED light panels
- 1No. CAMT2000 - access required
- 1No. CAMT Touch Screen
- 1No. CAMT2000 Control Module
- 2No. HEPA Filters
Options:
- Floor Tiles: £6,120.00
- Transfer Hatch: £1,250.00
- 1 x 5m Changing Atrium: £2,480.00
Applications:
- Aerospace & Engineering
- Laboratories & Research
- Composites & Electronic Component Manufacturing
- Optical & Precision Engineering
Pricing does not include; vat, delivery or installation - POA
*Cleanroom Kit Installation Guide - available upon request
