Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- Description
Seal width: 3 mm
Seal length: 235/320/420/620 mm
IP 30
3-4 seals per minute
Machine is equipped with a cutter knife
Technical Information

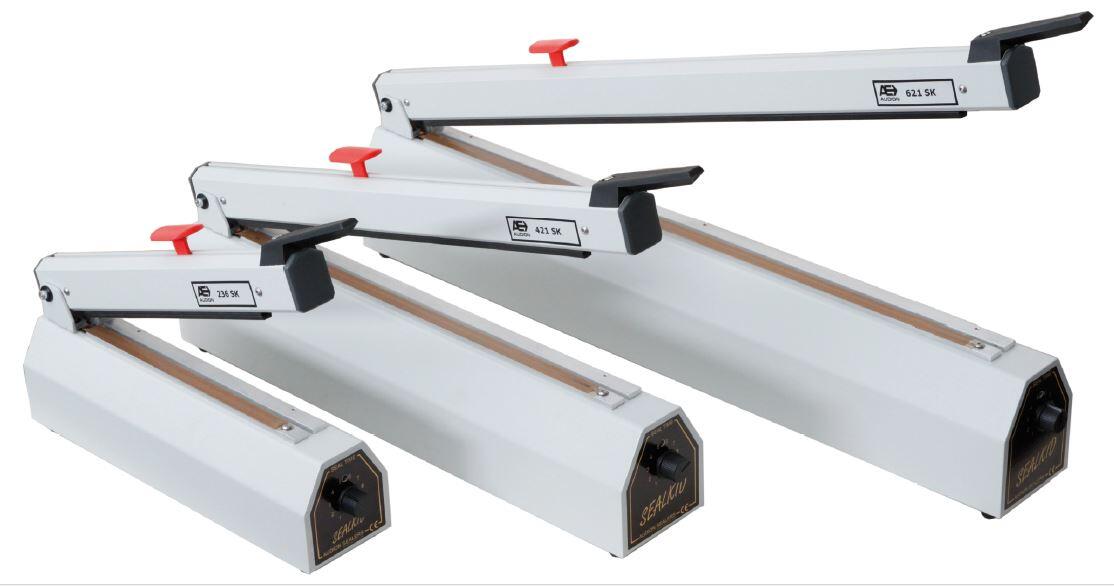

Specifications Sealkid
236 SK
321 SK
421 SK
621 SK
Seal width
3 mm
3 mm
3 mm
3 mm
Seal length
± 236 mm
± 321 mm
± 421 mm
± 621 mm
Max. film thickness
2 x 0,2 mm
2 x 0,2 mm
2 x 0,2 mm
2 x 0,2 mm
Dimensions (sealing arm down)
90 x 186 x 450 mm
100 x 202 x 535 mm
100 x 202 x 635 mm
100 x 213 x 835 mm
Weight
5,1 kg
6,5 kg
7,1 kg
10,2 kg
Capacity
3-4 seals per minute
3-4 seals per minute
3-4 seals per minute
3-4 seals per minute
Power
230V-1ph-50/60 Hz
230V-1ph-50/60 Hz
230V-1ph-50/60 Hz
230V-1ph-50/60 Hz
Consumption
300 Watt
700 Watt
550 Watt
650 Watt
Spare part set (code)
311-1210
317-1210
314-1210
324-1210
