Description

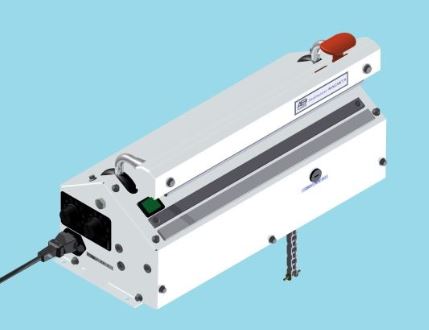

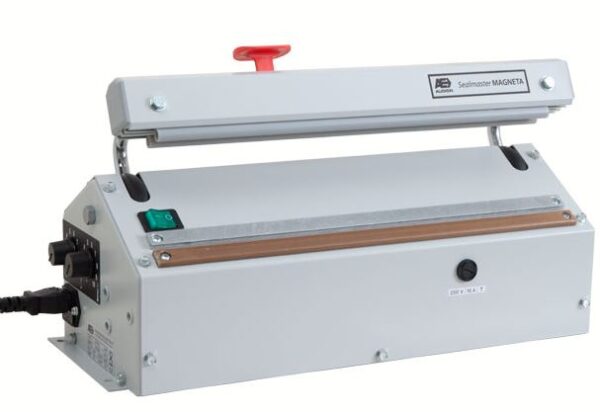

The Audion Magneta (Sealmaster) series consists of a complete range of manually operated impulse sealers with different sized models and many options. This user friendly and safe machine is ideal for packing small and medium sized series. The machine can work with pre-made bags as well as with tubular film roll stock. When working with tubular film, the machine can produce various length bags by using the integrated shielded cutter blade.

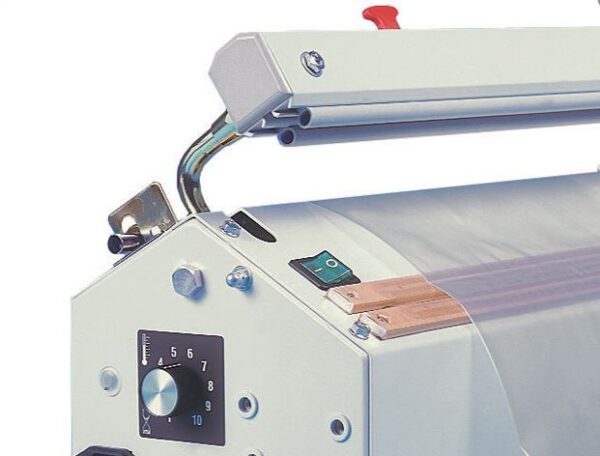

The sealing cycle of the machine can easily be started by pushing down the seal bar by hand, by a foot pedal or by a foot switch. Once started the magnetic bars remain closed throughout the sealing and cooling cycles and then automatically open, ready to make the next seal. The machine is suitable for sealing polyethylene, polypropylene, PVC and thin laminates and the sealing and cooling times are adjustable.

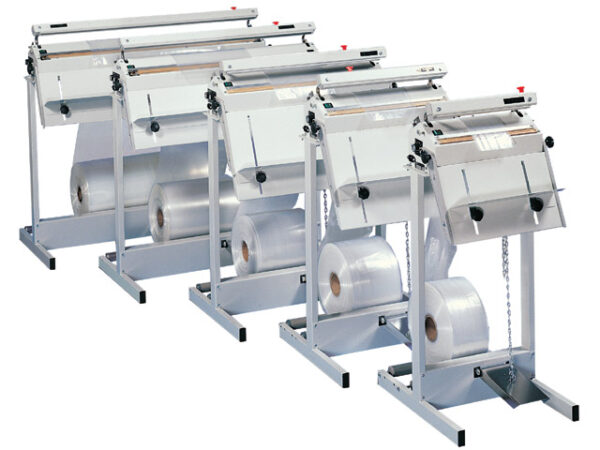

Sizes:   320mm  420mm  520mm  620mm  720mm  820mm  1020mm

MAGNETA MG

The sealing cycle of the machine can easily be started by pushing down the seal bar by hand or by using a foot pedal. Once started the magnetic bars remain closed throughout the sealing and cooling cycle and then automatically open, ready to make the next seal.

The machine is suitable to seal polyethylene, polypropylene and thin laminates. Cooling times are adjustable.

MAGNETA MGT

The twin seal model of the Magneta is equipped with two parallel sealing bars. The cutting device will cut the film in between the two sealing bars. With a switch the second sealing bar can be turned off, so the machine can also be used as a standard machine. Only on the 321 model the second seal bar can not be switched off.

MAGNETA MGS

The MGS model of the Magneta is made out of stainless steel for special applications like the food industry or for violent environments. The MGS has a stainless steel housing and accessories. All the other characteristics are identical to the standard model. The options like the support table and the support are also available in stainless steel.

MAGNETA MGM

The MGM sealer is powered by an electrical motor and equipped with an electrical foot switch. This special system enables you to close the sealing jaws with a gentle push on the pedal. The seals are from a consistent and reliable quality. Almost all Audion Magneta models can be supplied as MGM version and the options also apply to the MGM models.

MAGNETA MG(M)I

The MGMI model of the Magneta is equipped with a motor and a 5mm wide seal instead of the standard 3mm wide seal. The seal wire from this model is fastened with tensioners in order to prevent the dilution of the wire.

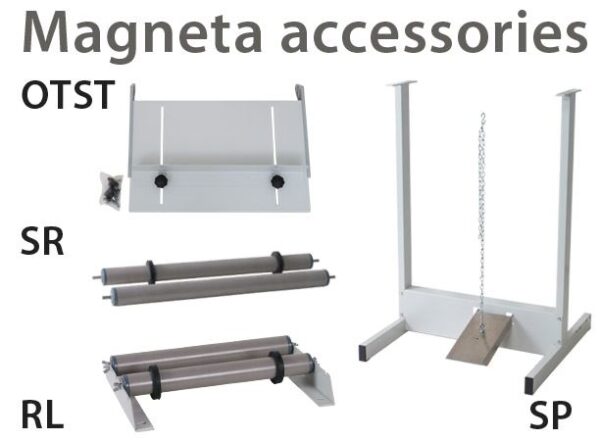

Accessories

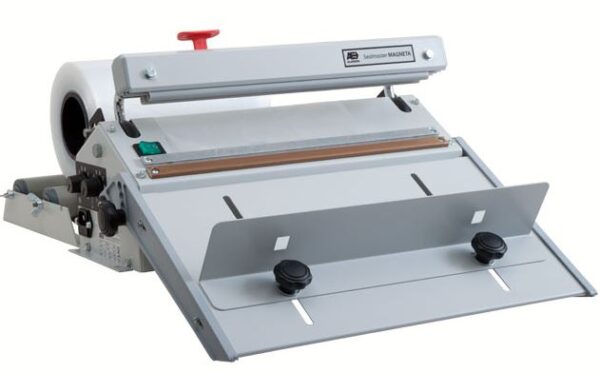

1) Work table with adjustable bag holder (AOTST)

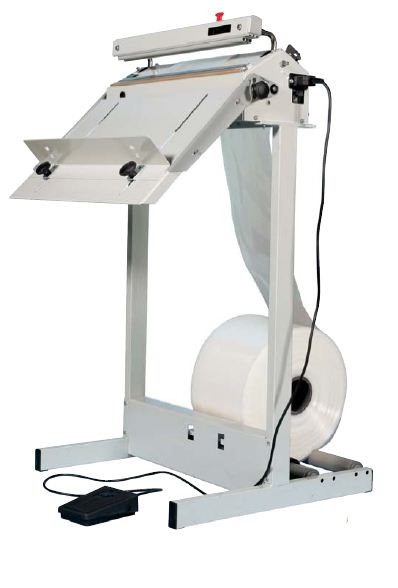

2) Support with foot pedal (ASP)

3) Rolloflux & polylock (ARL)

4) Set of rolls & polylock (ASR)

Angle device

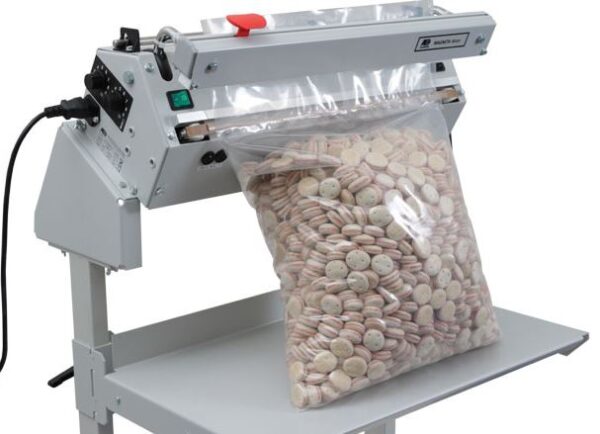

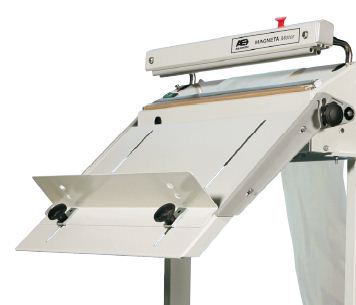

  • The angle device (AD MGMI) places the machine in an angle (steep and less steep, as shown in the picture). This accessory can only be used in combination with an MGMI or an MGMIDS. Also shown on the picture is an in height ajustable bag support which is convenient when sealing heavy bags.

1) Less steep angle of Angle device

2) Steep angle of Angle device

3) Adjustable bag support

4) Work table AOTST

Please advise the model that you are interested in and we will prepare a quotation.

Brand

Audion

Audion Packaging Machines are high quality European made packaging machines with a worldwide service network.

With Audion you have a choice of packaging machines that meet your production requirements. The extensive range of machines covers a large packaging need. Audion Elektro specialise in design and development and manufacture of packaging machinery for the high-end packaging industry. Audion Packaging Machines are sold worldwide and pack everything; from medical, industrial parts to food. Audion Elektro manufacture high quality products for every market, from industrial to retail, standard or custom made, Audion develop a solution for your packaging challenges. Not only for today, but also for the future.

Audion Packing Machines:

  • Table top heat sealers
  • Medical / pharmaceutical / high tech packaging
  • Vacuum packing
  • Automatic packaging
  • Shrink packaging
  • Rotary / Band sealers
  • Tray sealers
  • Packaging material – Consumables
  • Packaging machines for E-commerce
As well as producing standard machines, Audion are happy to provide bespoke models where required.

Additional information

Weight 30 kg
