Optimax Power Pre-stretch Pallet Wrapping Turntable - OPSW002

Advanced semi automatic stretch wrapping turntable for palletised loads

SPECIFICATIONS

• Powered pre-stretch extends film length to up to 300% for more secure wrapping and reduced film use (1 Meter of film stretches to 4 meters)
• Single start/stop turntable position and magnetic brake for easy loading/offloading

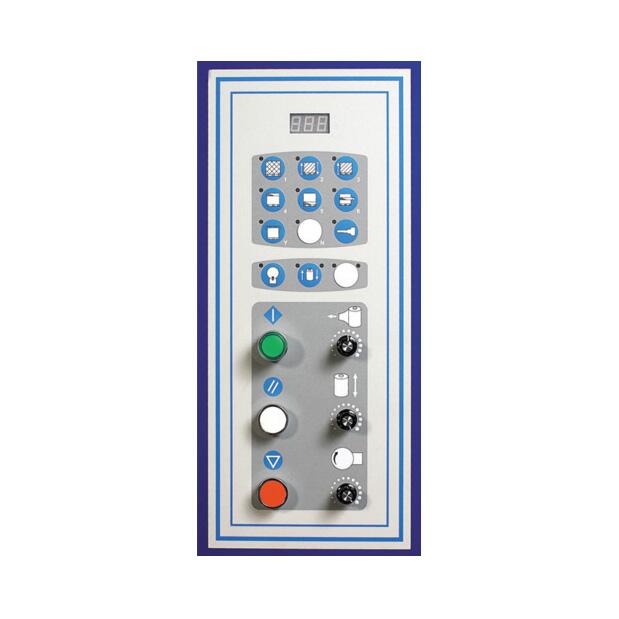

• 180 degree rotating electronic control panel
• Fully programmable wrapping configuration
• Soft start and stop functions
• Advanced soft wrapping regulates the film tension as the pallet rotates to avoid over-tensioning on corners, which can cause carton damage
• Mid-cycle reinforcement function enables greater strength at required points
• Top cover pause function allows insertion of separate top cover before wrapping resumes
• Automatic film cut-off
• Optional loading ramp (PSWR) for pallet trucks
• Turntable height 82mm
• Turntable diameter 1650mm
• Maximum loading weight 1650kg
• Maximum wrapping width/length 1050 x 1050mm
• Maximum wrapping height 2000mm
• Maximum turntable speed 12rpm
• Power supply 240V 13A
• Power consumption 1.2kW
• Dimensions (W x D x H) 2400 x 1650 x 2345mm
• Weight 450kg

CONSIDER RAMP FOR PALLET PUMP TRUCK LOADING AND UNLOADING - SEE OPSWR

CONSIDER SEMI-AUTOMATIC PALLET STRETCH SEALER - SEE OPSW004
