SPECIFICATIONS

• No minimum pallet weight, width or depth
• Minimal clearance required around pallet
• Easily relocated to where wrapping required

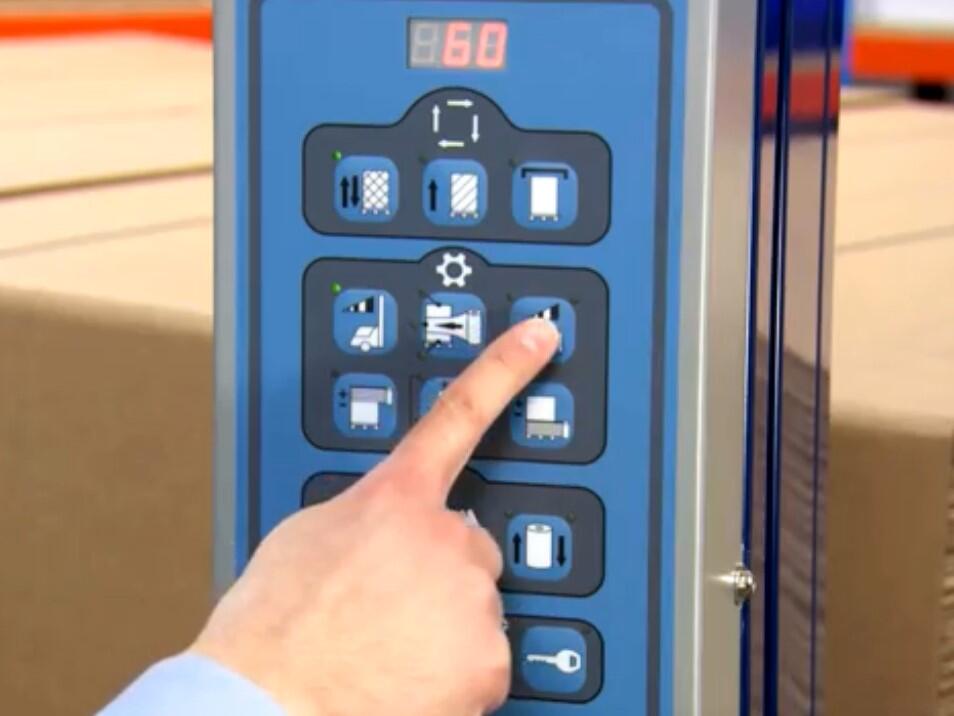

• Password-protected touchscreen control panel features:
  • Independently adjustable to and bottom wrapping count and tension
  • Two power pre-stretch ratios offering 230% and 300% film length increase
  • Adjustable cart rotation speed 20 - 90mtr./min.
  • Adjustable film carriage speed 1 - 5mtr./min.

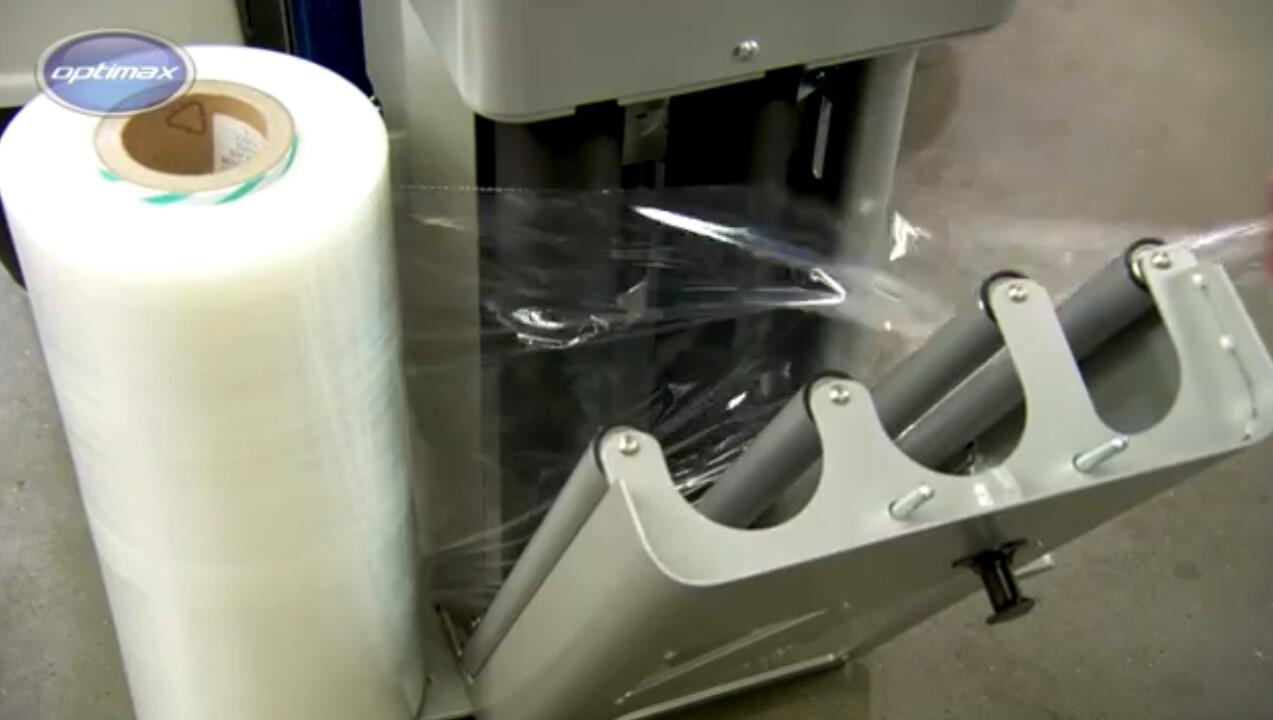

• Film carriage easily reloaded and features anti-drop mechanism for improved safety
• One-way idling roller prevents entanglement in the event of film breakage and facilitates film re-feed
• Soft-wrapping feature protects pallet contents from damage due to uneven film tension at corners
• Automatic photocell pallet height detection
• Automatic end of cycle film cutting
• >300 pallet wraps per full battery charge
• 2x 12v100Ah zero-maintenance lead acid batteries
• Power consumption 0.7kW
• Overall dimensions 1175 x 1758 x 2570mm
• Maximum wrapping height 220mm
• Minimum pallet size 600 x 600mm
• Operation radius 1150mm from edges of load or pallet
• Nett weight 292kg
