Code
ST106SDH900M
Star 106 Medical Vacuum Sealer, 900mm seal length x 6mm seal width by Star Universal
£0.00
£7,126.00
ex VAT
(
£0.00
£8,551.20
inc VAT)
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- Description

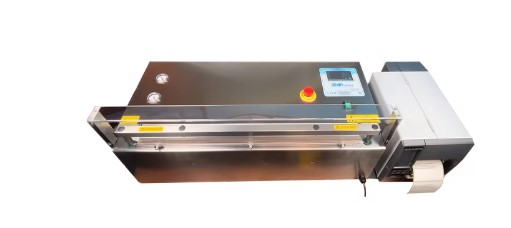

The Star 106 Medical is a bench mounted vacuum sealer:
With double heat 900mm x 6mm sealing jaws, it can seal most modern plastic, biodegradable, foil, paper and laminate packaging. Solenoid operated automatic closure & hold down of vacuum clamp during the timed vacuum cycle, allowing the operator the ability to prepare the next product during the sealing cycle.- Retraction of probe & closure of sealing for weld & cool cycle
- Heavy duty footswitch initiation for vacuum & sealing cycle
- Integrated safety circuit to prevent jaw locking or heating until fully closed
- Vacuum & sealing operations by the STAR ARTICS circuit board
- Vacuum time adjustable to the nearest second
- Weld & cool times adjustable to the nearest 0.1 sec. & deg. C
- Finish: 304 stainless steel
- Supplied with a consumables spares kit, technical manual & CE certification
- The machine is stainless steel for more corrosive environments.
Temperature Control:
The Star ARTICS digital controller is based on time & allows a weld and cool temperature to be set. This allows for a perfect weld to be achieved every cycle. All settings are password protected and the board allows up to 8 different sets of parameters to be programmed. Alarm parameters can be set to give operational tolerances and a preheat is available for more rapid welding & with alphanumeric error reporting on the display.Star 106 Options:
- Thermal printer
- Medical Touch Screen Controller
- Pneumatic jaw operation for greater weld pressure
- Constant Heat
- Heavy Duty Air Foot Switch (if pneumatic)
- Twin Push Button Start with Safety Relay
- Emergency Stop Button with Safety Relay
- Manual Safety Cutter
- Stands (not included)
- Stand Casters
- EU Mains Plug
- Additional spares kit
PackSealer YouTube Channel

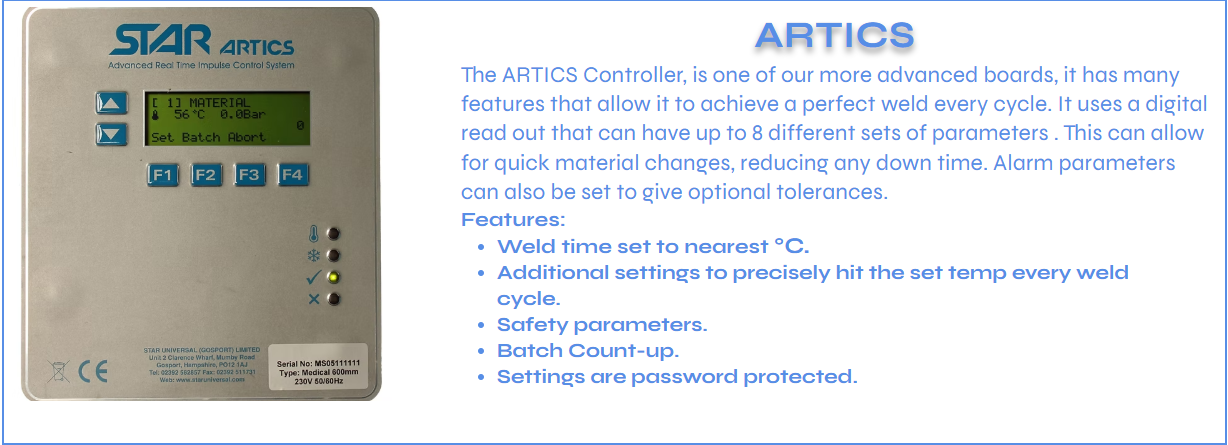

The Star ARTICS controller takes the level of control even further. The heating element heats up to the weld temperature and holds the set temperature for a set time. It then cools the element to a temperature or time, dependent on application. There is also a preheat option so the machine heats the element to a set temperature when not in use. When fitted to a Medical Vacuum machine the ARTICS controller also controls the vacuum and gas flush times.
The Star Medical controller has the same features as the ARTICS controller, with the additional features of measuring and controlling the weld pressure, independent second temperature control (if a second element is used) and seal cycle data storage for upload to a computer. When fitted to the Medical Vacuum Sealer the Star Medical controller also measures and controls the vacuum and gas flush levels in mBar.
Star Medical Controller
Optional on pneumatically operated machines
The Star Medical controller comes with all the features of the ARTICS controller plus:- Twin channel temperature control for a second element
- Sealing pressure monitoring with alarm parameters
- You can control the seal pressure electronically
- Vacuum and gas flush level monitored in mBar
- Seal cycle data recording and stored for upload onto a computer
