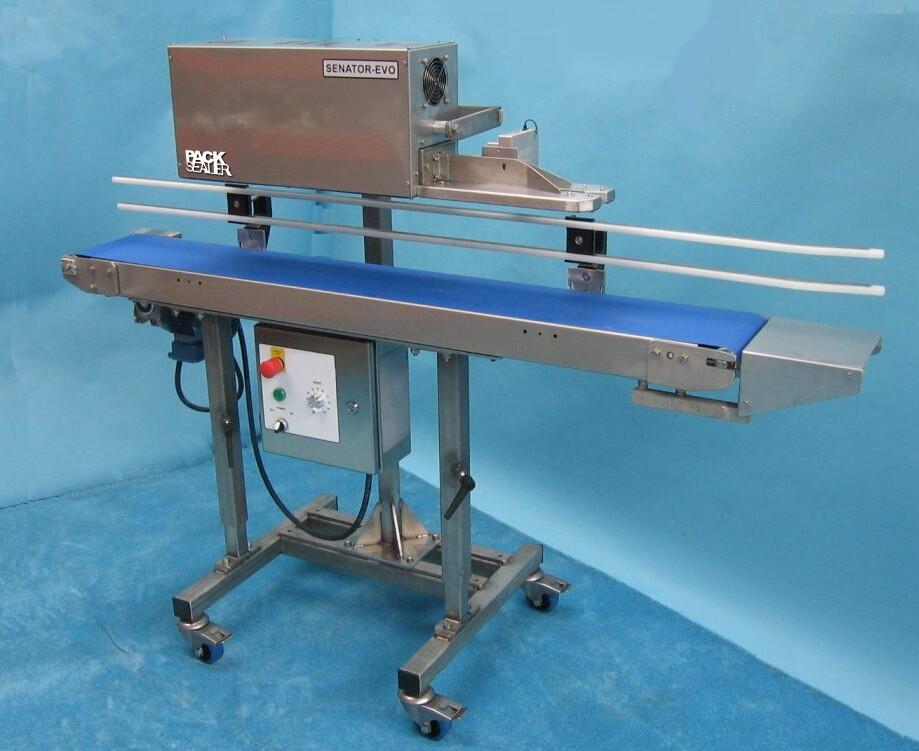

The Senator EVO is a vertical laminate pouch continuous sealer built for production lines running complex laminated films, coated foils, paper-lined bags, and plastic laminates. If your standard band sealer struggles with thick folds, gussets, or heavy laminate materials, the Senator EVO is engineered to seal through them cleanly at up to 12 metres per minute.
Designed as a standalone floor-standing system with a height-adjustable frame and high-level belt conveyor, the Senator EVO is particularly well suited to powders and free-flowing products. For the pack weight it will carry on your product, call us on 0121 704 0294 before you order, as the right figure depends on whether the pack is supported on the conveyor as it passes through. Bags are manually fed and guided by a belt-driven infeed that grips the bag top on entry. Firm pressure is maintained as the bag passes through sealing, ensuring the bag top stays square and the seal is made under firm, even pressure. The exit produces a distinctive crimp pattern seal.
The sealing head is built to an industrial specification in stainless steel, with heaters running to 250 degrees C and precision pressure wheels. Electronic variable speed drive and a digital temperature controller provide accurate, consistent seals across long production runs.
Seal width 12mm Seal form Crimp pattern Max throat depth 70mm Speed range 3 to 12 m/min Max temperature 250 degrees C Unsupported pack weight 0.25kg Construction Stainless steel bodywork Power 500W, 230V Feed direction Right to left (standard) Options: Front pack guide, non-standard seal widths, flat seal pattern, left-to-right version, printing facility.
Call 0121 704 0294 for availability, pricing, and lead time.
