- Description

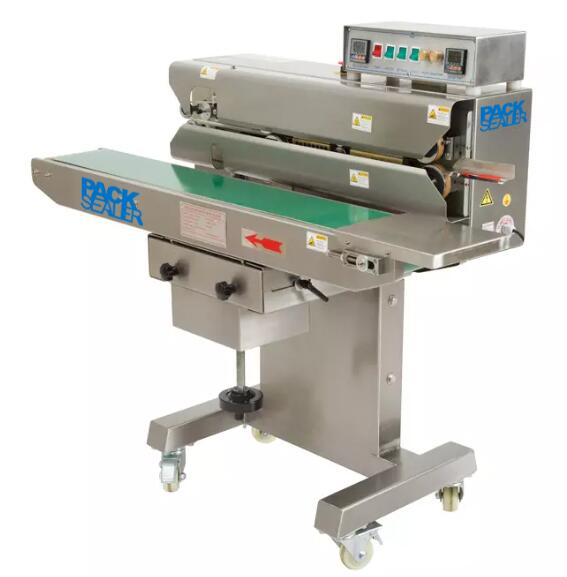

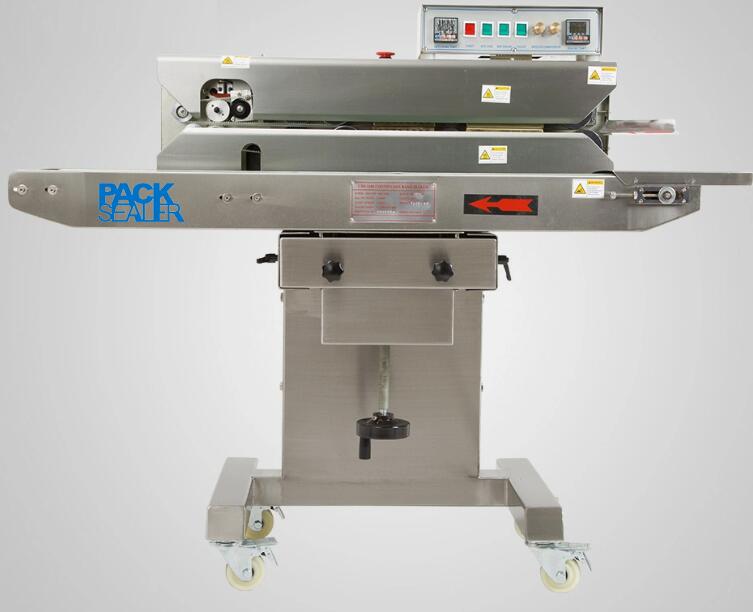

The CBS-1100H is a stainless steel floor standing horizontal continuous band sealer for sealing large pre-made bags lying flat. It handles single or multi-layer plastic bags including foils and kraft paper laminates, and is built for production lines running granules, solids, and products that do not spill when sealed horizontally.

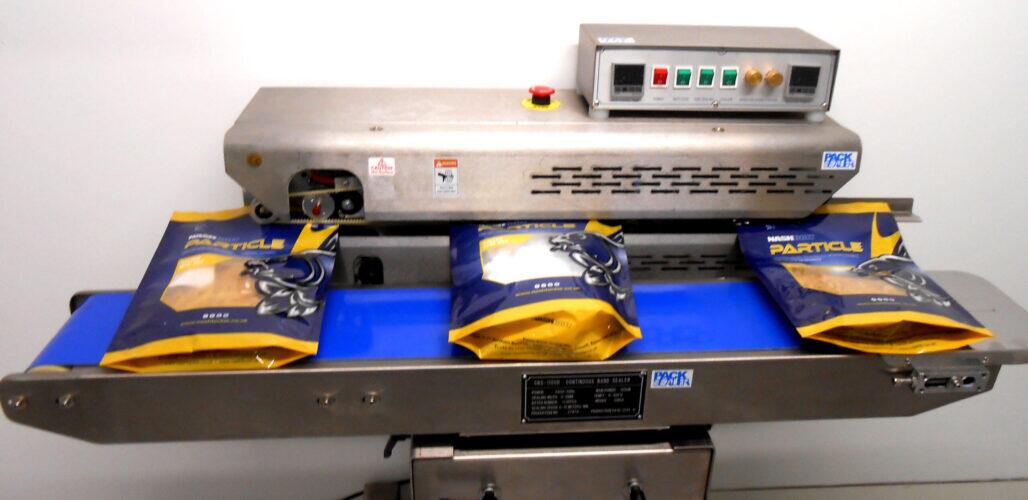

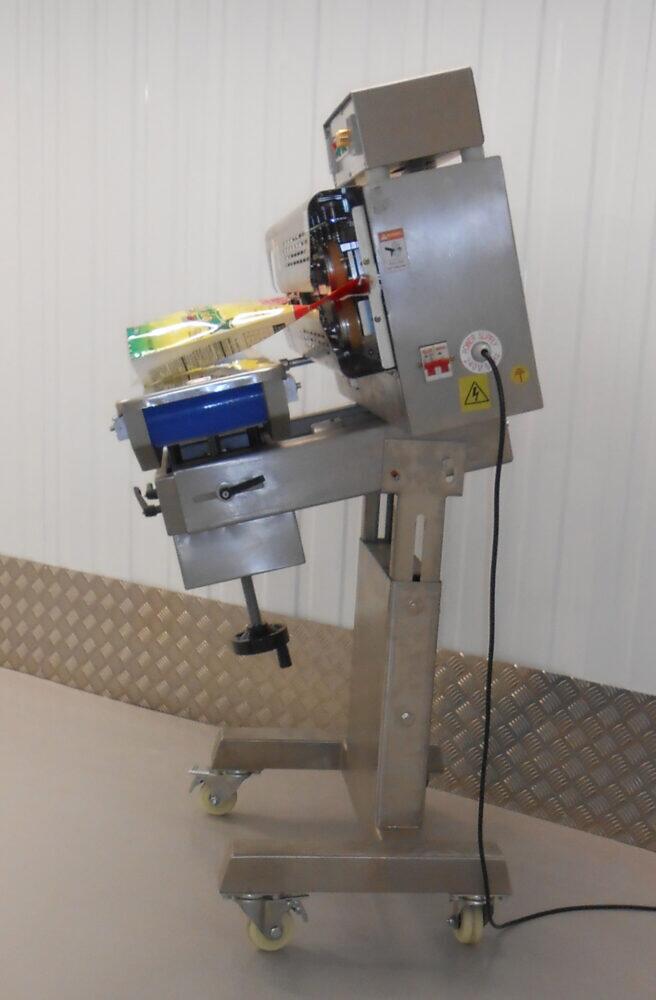

The conveyor and head unit tilt up to 30 degrees to help contain partially flowable products during sealing. The height-adjustable integrated conveyor belt is synchronised to the sealing unit, and the control panel sets seal temperature, printer temperature, and conveyor speed independently. Floor standing on lockable caster wheels for easy repositioning. Bags feed in from the right and exit sealed on the left.
Most operators achieve 12 bags per minute or more (5,000+ per day), with throughput limited primarily by loading speed.
Seal width 10mm Seal speed Variable up to 12 m/min Temperature range 0 to 300 degrees C Max bag height 400mm (min 150mm) Max conveyor loading 15kg Tilt Up to 30 degrees Construction Stainless steel, lockable caster wheels Dimensions 1100 x 610 x 1030mm Weight 125kg Horizontal band sealers are not suitable for flowable products like powders or liquids that would spill when bags are laid flat. For those applications, see the PSC-1100V vertical model.
Call 0121 704 0294 for availability and lead time.
Critical spare parts for continuous band sealers are the Teflon (PTFE) bands, which should be replaced regularly when they break or appear blackened. Browse band sealer spare parts. See our guide to continuous band sealers for food production or heavy duty heat sealers.
