Vertical Continuous Sealer Stainless Steel Floor Standing
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- DescriptionRangeContinuous band sealerssee the full range →

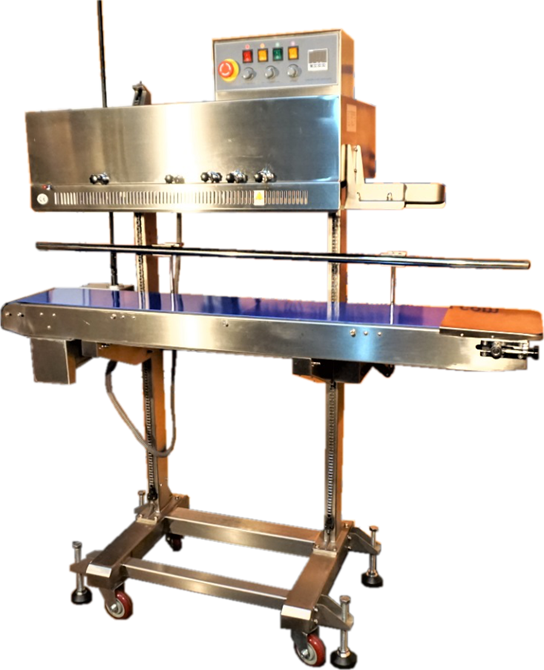

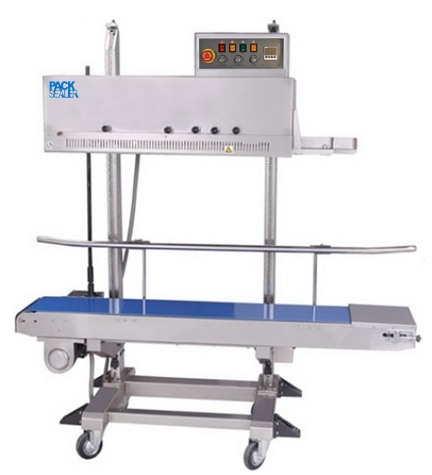

The PSC-1100V is a stainless steel, floor standing vertical continuous band sealer for sealing large pre-made bags standing upright. It suits production lines packaging powders, granules, liquids, and bulk products that would spill if sealed lying flat: the bag stays vertical from loading to discharge, so the contents never have to.

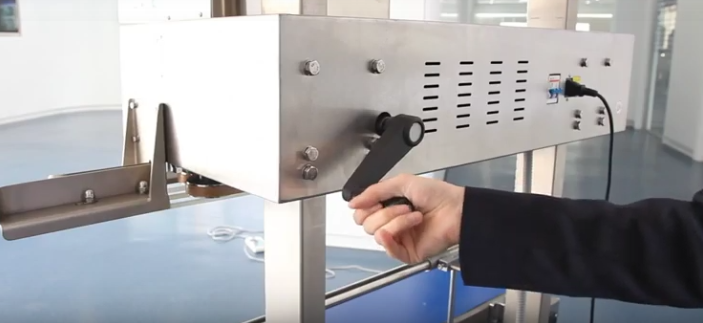

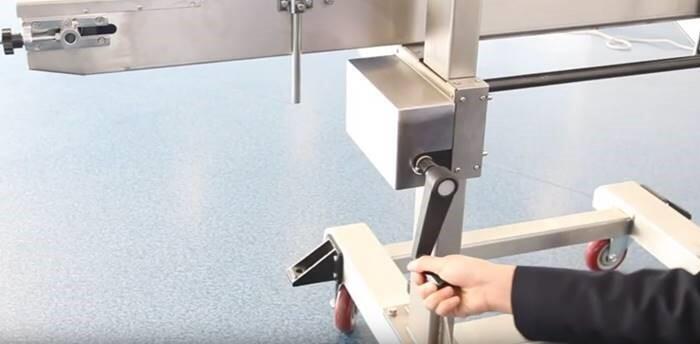

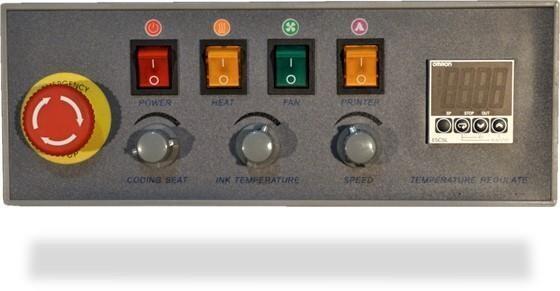

The height-adjustable conveyor is synchronised to the sealing unit, so bag speed and seal quality stay consistent as you change bag sizes. Seal temperature, printer temperature, and conveyor speed set independently from the control panel. The whole machine stands on lockable caster wheels, so it can be positioned and repositioned on the production floor as the line changes. Bags feed in from the right and exit sealed on the left.
This is the machine to specify when a tabletop band sealer with a vertical conversion kit runs out of headroom. Converted tabletop machines cap out around 300mm of bag height; the PSC-1100V takes bags up to 600mm tall with up to 15kg riding on the conveyor, which is the difference between sealing pouches and sealing sacks.
Specifications
Seal width 10mm Seal speed Variable up to 12 m/min Temperature range 0 to 300 degrees C Max bag height 600mm (min 150mm) Max conveyor loading 15kg Construction Stainless steel, lockable caster wheels Power 240V AC, 750W Dimensions 1550 x 600 x 1360mm Weight 125kg Spares & consumables for this machineThis machine seals at 10mm.Single seal.Not sure which part you need? Call us on 0121 704 0294.Genuine parts, built and stocked by us in the UK.Call 0121 704 0294 for availability and lead time.
Browse band sealer spare parts. See our guide to continuous band sealers for food production or heavy duty heat sealers.
Common questions
What bag sizes can it seal?
Bags from 150mm up to 600mm tall, with up to 15kg riding on the conveyor. The seal itself is a 10mm continuous band seal. If your bag is taller or heavier than that, call us on 0121 704 0294 and we will point you at the right machine.
What products suit a vertical band sealer?
Anything that would spill, settle, or smear if the bag were laid flat: powders, granules, liquids, and bulk products. The bag stays upright from loading to discharge, so the contents stay where they should while the seal closes.
How is this different from a vertical conversion kit on a tabletop band sealer?
Headroom and load. A converted tabletop machine like the PSC980 caps out around 300mm of bag height in vertical mode. The PSC-1100V is built vertical from the ground up: floor standing, stainless steel, bags to 600mm with up to 15kg on the conveyor. It is the difference between sealing pouches and sealing sacks.
Is it suitable for food production?
Yes. The construction is stainless steel on lockable caster wheels, so it can be wiped down and moved as the line demands. See our guide to continuous band sealers for food production for how lines typically set these up.
How much does the PSC-1100V cost?
£2,999.99 ex VAT. Call 0121 704 0294 for current availability and lead time before ordering, and we will confirm delivery to your site.
