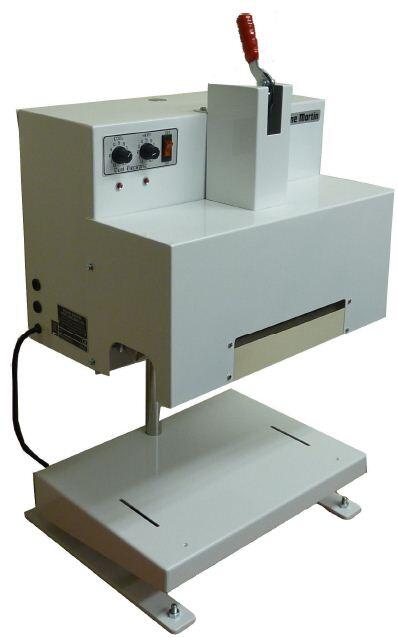

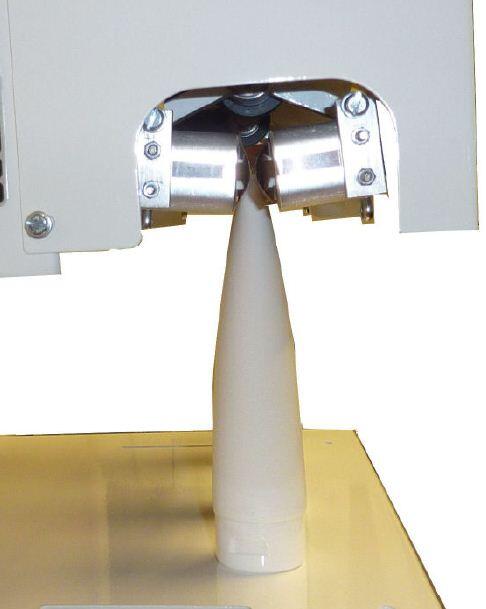

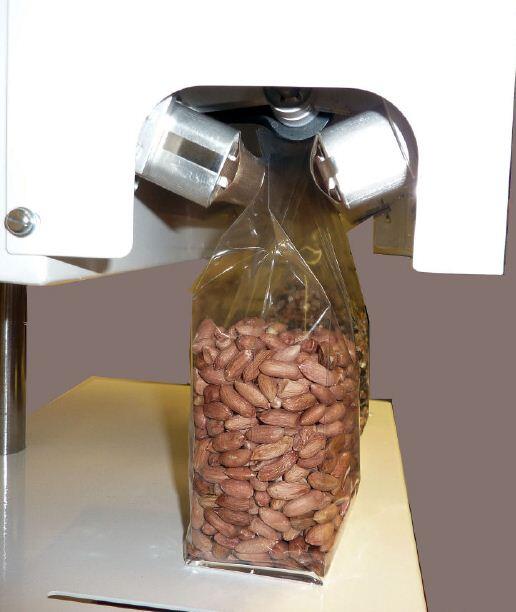

This impulse tube heat sealer with the adjustable support shelf has been designed to stand up pouches and tubes. It is fitted with a dual electronic timer for control over both the heat and cool cycles. The operation lever locks into position while the welding cycle takes place leaving the operator free to load the next bag to improve productivity. Both of the jaws move simultaneously to ensure the jaws close around the bag without distortion. Each jaw is fitted with a 6mm element, applying the heat from both sides of the bag to ensure a high quality seal, on laminated pouches and Tubes.

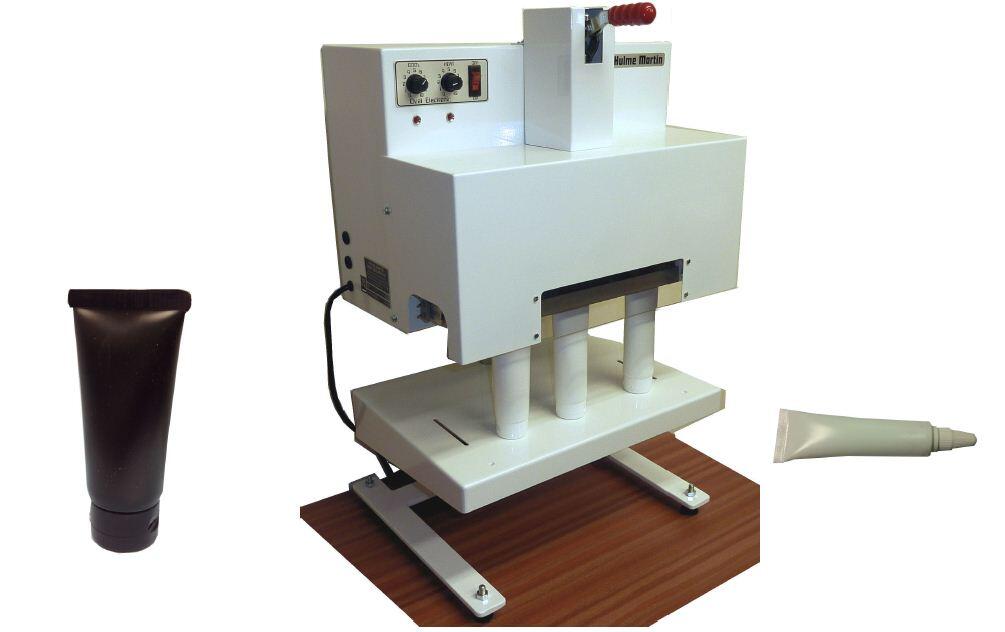

Tube holders can be manufactured so several tubes can be welded at the same time. The height of the sealing jaws is adjusted with 2 tri-screws on the back of the machine so the machine slides along the H-Frame upright for infinite adjustment. Larger H-frame stands can be manufactured to meet your requirements.

Hulme Martin Tube Sealer Tube Holder | PackSealer

• Sealing Length 320mm
• Seal Width 6mm Double Heat
• Film sealable 250mu PE, Aluminium laminated pouches, most heat sealable materials
• Voltage 240Volts, 110V conversion
• Power Consumption 50W standing 800W heating cycle
• Fuse Rating 3.15A Mains 16A Elements
• Foot Print 390mm x 33mmm x 620mm high
• Weight 18Kg
• Operation Hand Operated with hold down handle
• Mounting Stands on a bench
• Finish Mild Steel with High Gloss white powder coat
• Adjustable Shelf Optional
• Jaw opening 25mm
• Max Bag height 350mm
• Max bag height with shelf 250mm
• Adjustable support shelf.

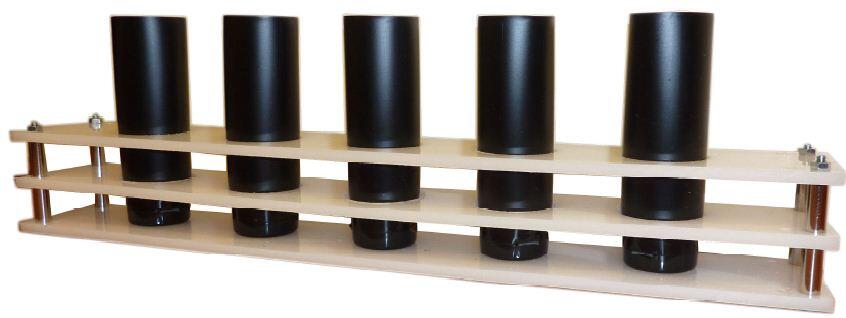

And optional tube holder which can be made to suit the size of your tubes allowing up to 6 tubes to be sealed in one operation.
