PSF355X2A Double Automatic Foot Sealer by Packsealer
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- DescriptionRangeFoot-pedal impulse sealerssee the full range →

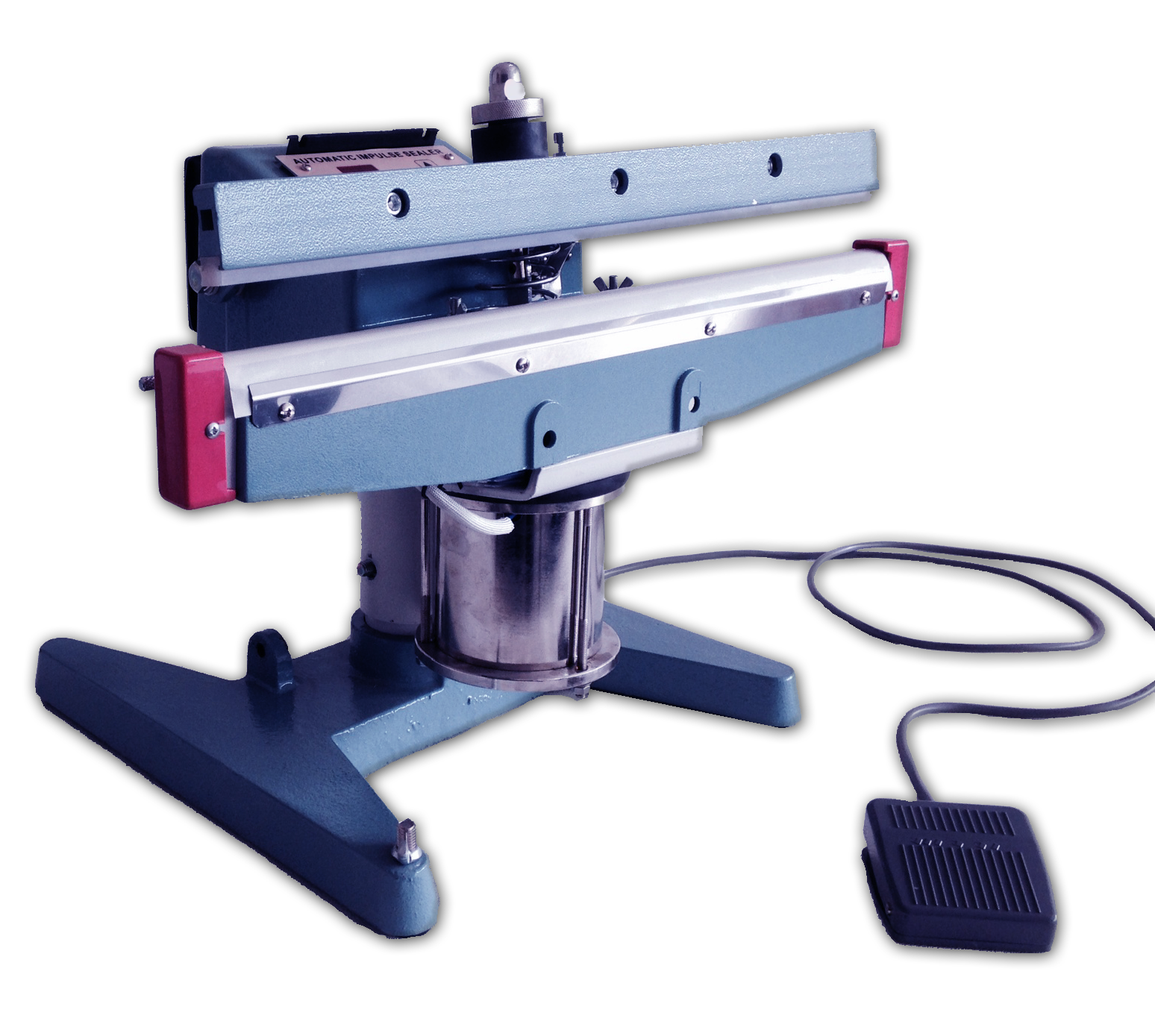

The PSF355X2A is a 350mm double automatic foot pedal sealer, built for production lines that need a fast, repeatable seal with no hand operation. Press the foot switch and the cycle completes automatically. Double heat (upper and lower elements) gives a strong, reliable seal on heavier films and gusseted bags that a single-element machine struggles to weld cleanly.
Supplied with stand, pedestal, adjustable worktable and a spare element. The adjustable timer suits films from 2 x 100 to 2 x 250 gauge, at up to 10 packs a minute. It converts to a bench sealer with a short stand tube. Built and serviced by us in Solihull.
Specifications
Seal length 350mm Seal width 5mm Heat Double (upper and lower elements) Film range 2 x 100 to 2 x 250 gauge Throughput Up to 10 packs per minute Power 2000W Weight 35kg Includes Stand, pedestal, adjustable worktable, spare element Important note on breakers
A spike in electrical demand can occur for a fraction of a second as the jaws close and heat is applied, which can trip the breaker. This is common with motors on start-up, so we recommend a C type breaker (motor rated) or a B32 type. A B type breaker may trip when current exceeds the limit for around 100 milliseconds, whereas a C type allows a longer period before tripping. More about circuit breakers.
Spares & consumables for this machineThis machine seals at 5mm standard.Double seal bar: fit the longer 5mm XL wire, or 8mm for the widest seal. It runs two elements (upper and lower), so order two.5mm XLPSW355XL5mm Spare Wire XLView part →8mmPSW358XL8mm Spare Wire XLView part →PTFEPSF355TPSF355 Roll of TeflonView part →Not sure which part you need? Call us on 0121 704 0294.Genuine parts, built and stocked by us in the UK.Fast UK dispatch on stock items, shipped from our Solihull warehouse. Call 0121 704 0294 for advice. See our guide to foot pedal heat sealers, or browse all spare parts.
Common questions
What does double heat mean?
Heating elements above and below the bag, instead of below only. Both faces of the film melt together at once, which is what heavier gauges and gusseted bags need for a clean weld. Single-element machines rely on heat soaking through from one side.
What is the difference between the PSF355X2A and the PSF355A?
The PSF355A is single heat and suits standard films to 2 x 150 micron. The X2A adds the second element for films from 2 x 100 to 2 x 250 gauge, heavier bags, and gusseted bags. Both run the automatic cycle from the foot switch.
Can it be bench mounted?
Yes. It converts to a bench sealer with a short stand tube. As supplied it is pedestal mounted with stand and adjustable worktable.
How much does the PSF355X2A cost?
£419 ex VAT, supplied with stand, pedestal, adjustable worktable, and a spare element. Built and serviced by us in Solihull, with elements and PTFE in stock.
