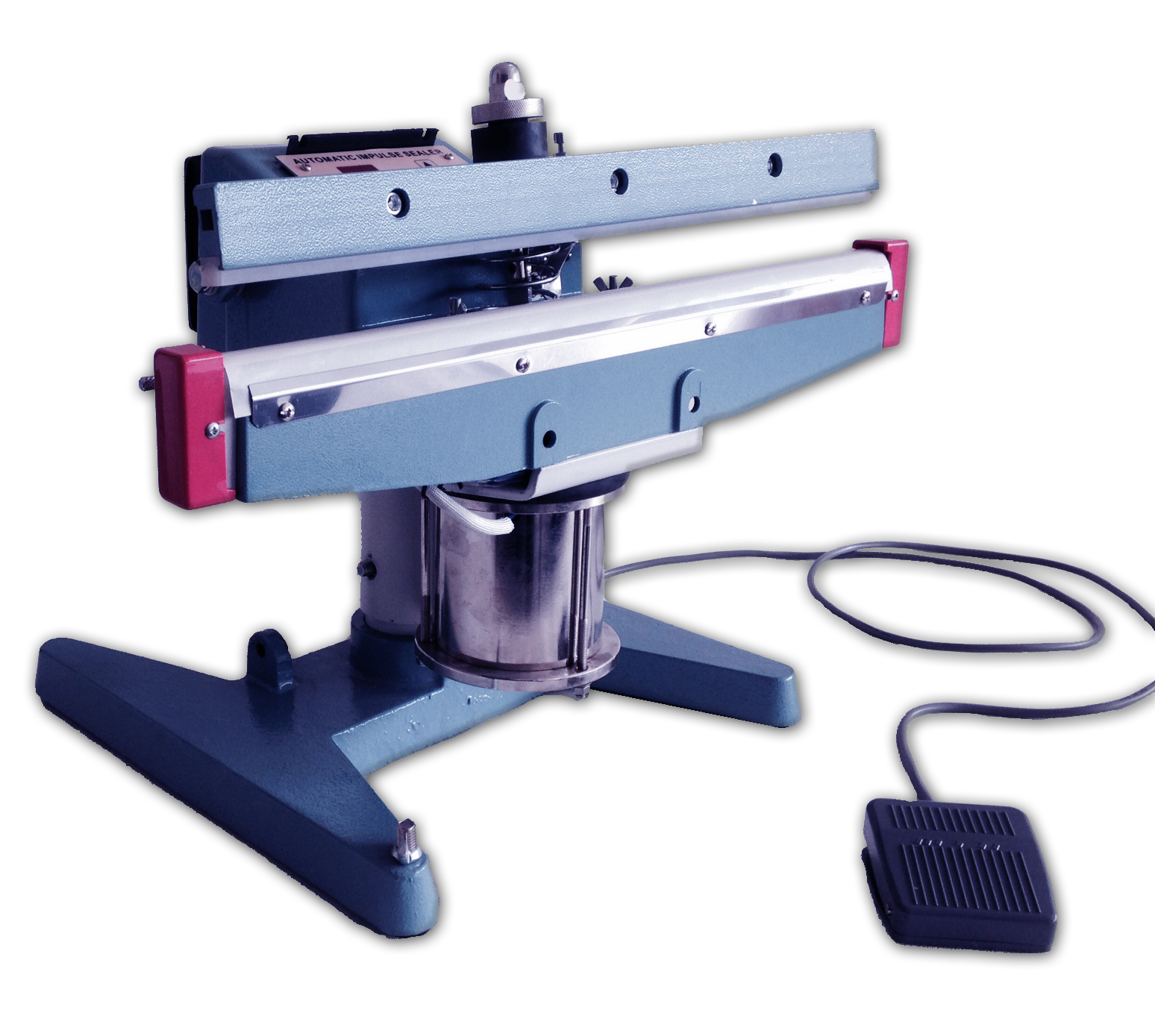

Heavy Duty Heat Sealer 600mm Automatic Double Heat Impulse Sealer
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- DescriptionRangeFoot-pedal impulse sealerssee the full range →
The PSF605X2A-HD is the heavy-duty version of our 600mm automatic double heat sealer, built for larger bags, sacks, and foil-based laminates that put real weight on the machine. The heavy-duty stand takes that load; the double 5mm seal, heated from both jaws, takes the thicker material.
Switch-operated foot sealing keeps both hands free, and in automatic mode the jaws close at pre-set intervals so the operator just feeds bags. Working height is 900mm. The adjustable timer covers films from 2 x 25 to 2 x 150 micron per side, at up to 10 packages per minute. Supplied with heavy-duty stand, pedestal, adjustable worktable, and a spare element.
Specifications
Seal length 600mm Seal width 5mm double seal Heat Double (upper and lower elements) Working height 900mm (heavy-duty stand) Film range 2 x 25 to 2 x 150 micron Power 2000W Weight 55kg Throughput Up to 10 packages per minute Includes Heavy-duty stand, pedestal, adjustable worktable, spare element Spares & consumables for this machineThis machine seals at 5mm.Double seal bar (upper and lower elements, so order two). Fit the longer XL wire; the standard wire is too short.KITPSF605KXLPSF605X2 Spares KitView part →PTFEPSF605TPSF605 Roll of TeflonView part →8mmPSW608XLPSW608XL 8mm element wireView part →Not sure which part you need? Call us on 0121 704 0294.Genuine parts, built and stocked by us in the UK.Fast UK dispatch on stock items, shipped from our Solihull warehouse. See our guide to heavy duty heat sealers, or browse all spare parts.
Important note
A spike in electrical demand can occur for a fraction of a second as the jaws close and heat is applied, which can trip the breaker. This is common with motors on start-up, so we recommend a C type breaker (motor rated) or a B32 type. A B type breaker may trip when current exceeds the limit for around 100 milliseconds, whereas a C type allows a longer period before tripping.
Common questions
What makes this the heavy-duty model?

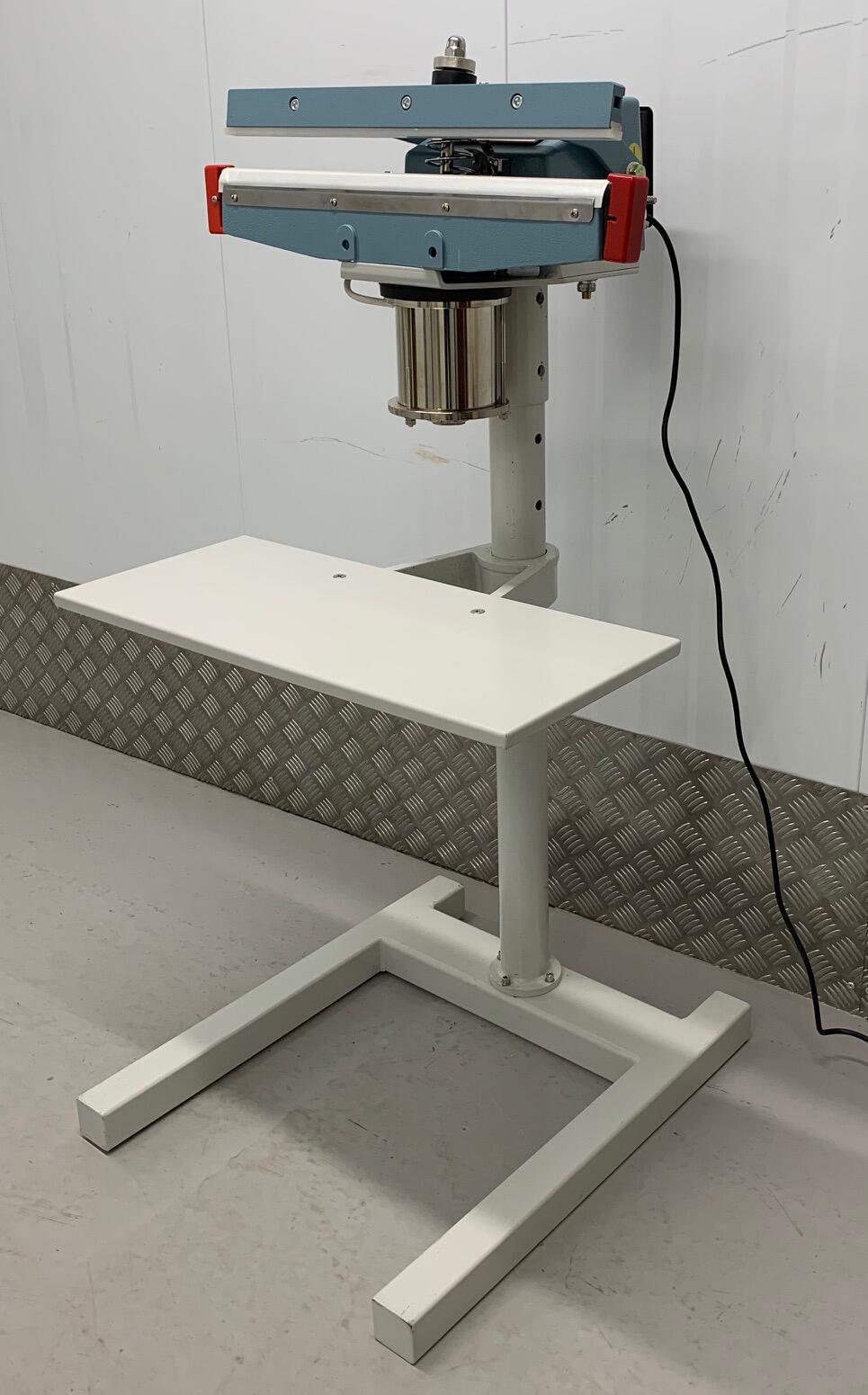

The frame. The heavy-duty stand takes the weight of larger bags and sacks during the seal, the build is 55kg against the standard model's 25kg, power is 2000W, and the working height rises to 900mm. It is built for lines where the filled bag itself is heavy.
What is the difference between the PSF605X2A-HD and the standard PSF605X2A?
Same 600mm double heat seal and automatic operation. The HD adds the heavy-duty stand, doubles the power to 2000W, and runs faster at up to 10 packages per minute. If your bags are light, the standard PSF605X2A saves you money.
What materials does it handle?
Heavier polythene and foil-based laminates, in films from 2 x 25 to 2 x 150 micron, including gusseted sacks. If you are unsure about your material, send us a sample bag and we will test it on the machine for you. Free.
How much does a heavy duty heat sealer cost?
The PSF605X2A-HD is £649 ex VAT, including the heavy-duty stand, pedestal, adjustable worktable, and a spare element. If your bags are light enough for the standard stand, the PSF605X2A does the same seal for less.
