600mm Automatic Foot Pedal Heat Sealer by Packsealer
Sorry we're out of stock!
Enter your email address below and we’ll notify you as soon as it becomes available.
Not sure it's the right fit? Tell us what you're sealing or the machine you run and we'll make sure you get the right kit, even if it's a cheaper option.
- DescriptionRangeFoot-pedal impulse sealerssee the full range →

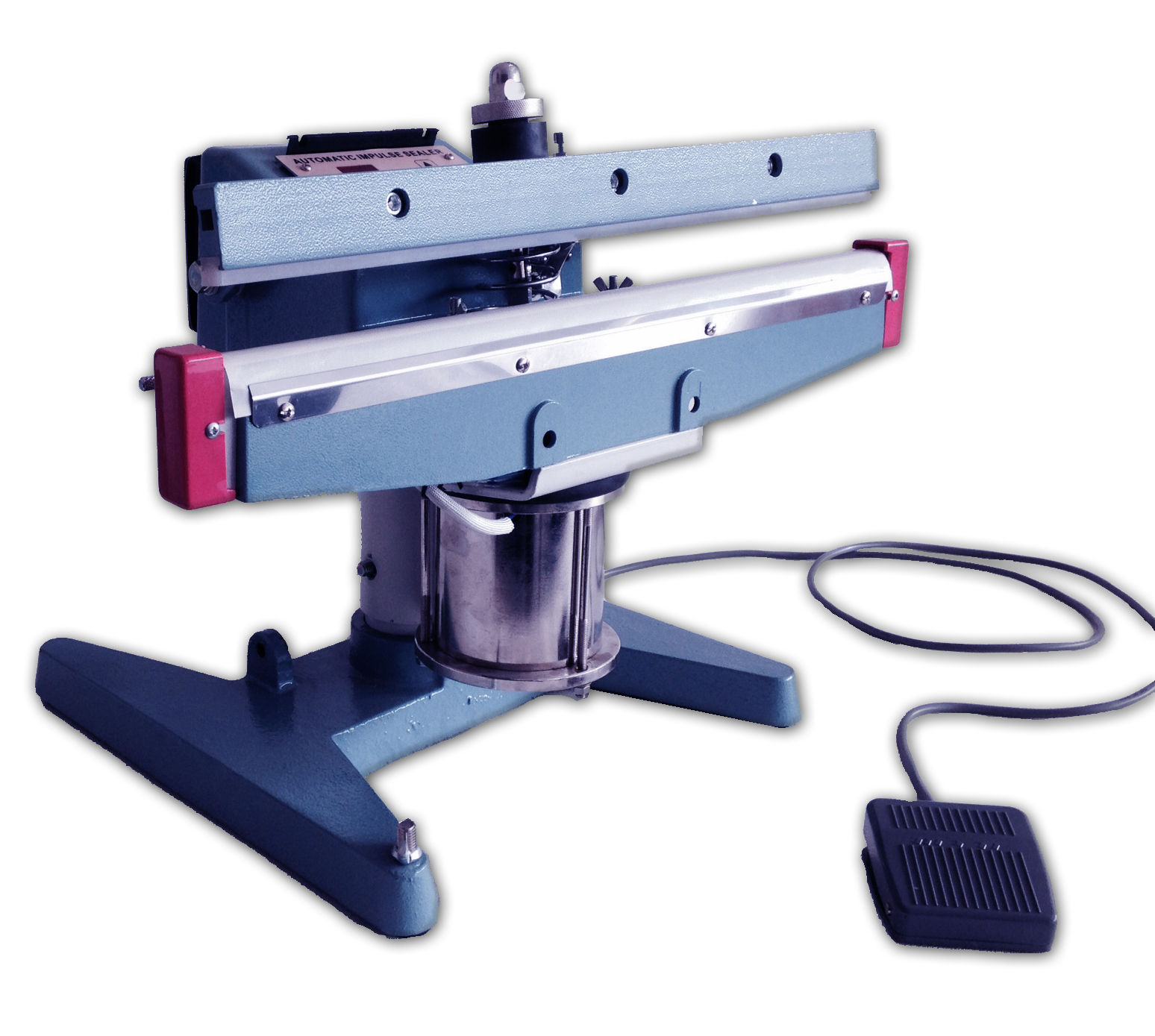

The PSF605X2A combines a 600mm double heat seal with automatic foot pedal operation. Both jaws heat simultaneously for reliable penetration through thicker films, and the automatic timer controls the seal cycle so every bag gets a consistent result.
The 5mm seal width can be converted to 8mm for heavier material. Pedestal mounted at 870mm working height, sealing bags up to 580mm wide across films from 2 x 25 to 2 x 150 micron, at up to 6 packages per minute. This is the top of the double-heat 600mm line: if you can do the timing yourself, the manual PSF605X2 does the same seal for less.
This is the specification production lines choose when the material is hard and the volume is steady: double heat to weld thick films, laminates, and gusseted bags through their full thickness, and an automatic cycle so the hundredth seal of the shift matches the first.
Specifications
Seal length 600mm Seal width 5mm (convertible to 8mm) Heat Double (upper and lower elements) Max bag width 580mm (25.5") Working height 870mm (pedestal mounted) Film range 2 x 25 to 2 x 150 micron Power 1000W Weight 25kg Throughput Up to 6 packages per minute Operation Automatic seal cycle Spares & consumables for this machineThis machine seals at 5mm.Double seal bar (upper and lower elements, so order two). Fit the longer XL wire; the standard wire is too short.KITPSF605KXLPSF605X2 Spares KitView part →PTFEPSF605TPSF605 Roll of TeflonView part →8mmPSW608XLPSW608XL 8mm element wireView part →Not sure which part you need? Call us on 0121 704 0294.Genuine parts, built and stocked by us in the UK.Fast UK dispatch on stock items, shipped from our Solihull warehouse. See our guides to foot pedal heat sealers and heavy duty heat sealers, or browse all spare parts.
Common questions
What does double heat mean?
Double heat means both the top and bottom jaws contain heating elements. Standard (single heat) sealers heat from one side only. Double heat gives better penetration through thicker polythene, laminates, foil-lined bags, and multi-layer films where single-sided heat can't reach the inner layers reliably.
When do I need the 8mm seal width conversion?
The 8mm conversion is for very heavy materials or bags carrying significant weight where the standard 5mm seal needs reinforcing. Most applications work well with 5mm. If you're sealing thick foil laminates, heavy sacks, or bags over 5kg, the 8mm option adds extra bond strength.
What is the difference between the PSF605X2A and PSF605X2?
Both are 600mm double heat foot sealers. The PSF605X2A has an automatic timer for consistent, hands-off seal cycles. The PSF605X2 is manual, giving you direct control over seal duration. The automatic model costs slightly more but reduces operator variability on production lines.
How much does an automatic double heat sealer cost?
The PSF605X2A is £596.99 ex VAT with the pedestal stand included. It is the top specification of the 600mm foot-pedal line; the picker at the top of this page links the manual and single heat versions if you want to compare downwards.
